Research Paper Volume 16, Issue 14 pp 11434—11445
Systematic characterization of the expression, prognosis and immune characteristics of PLOD family genes in breast cancer

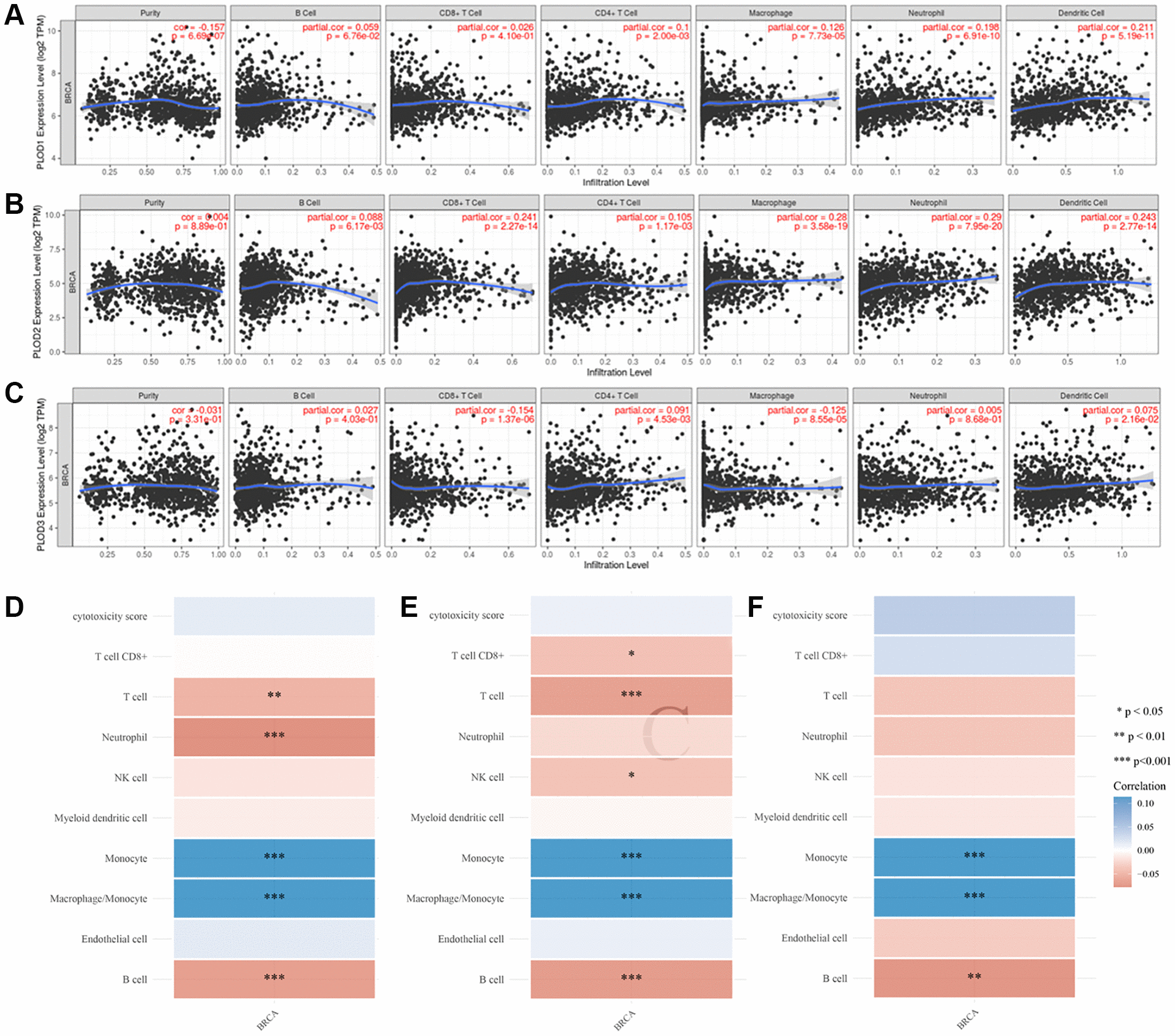

Figure 4. Correlation of PLOD family genes with TIICs in breast cancer. (A) The expression of PLOD1 in TIICs; (B) The expression of PLOD2 in TIICs; (C) The expression of PLOD3 in TIICs; (D) PLOD1 of immune score evaluation; (E) PLOD1 of immune score evaluation; (F) PLOD1 of immune score evaluation. Negative values indicate negative correlations and positive values indicate positive correlations, the deeper the color, the stronger the correlation. *p < 0.05, **p < 0.01 and ***p < 0.001, (*) stand for significance levels.
