Research Paper Volume 16, Issue 11 pp 9859—9875
Tsc22d3 promotes morphine tolerance in mice through the GPX4 ferroptosis pathway

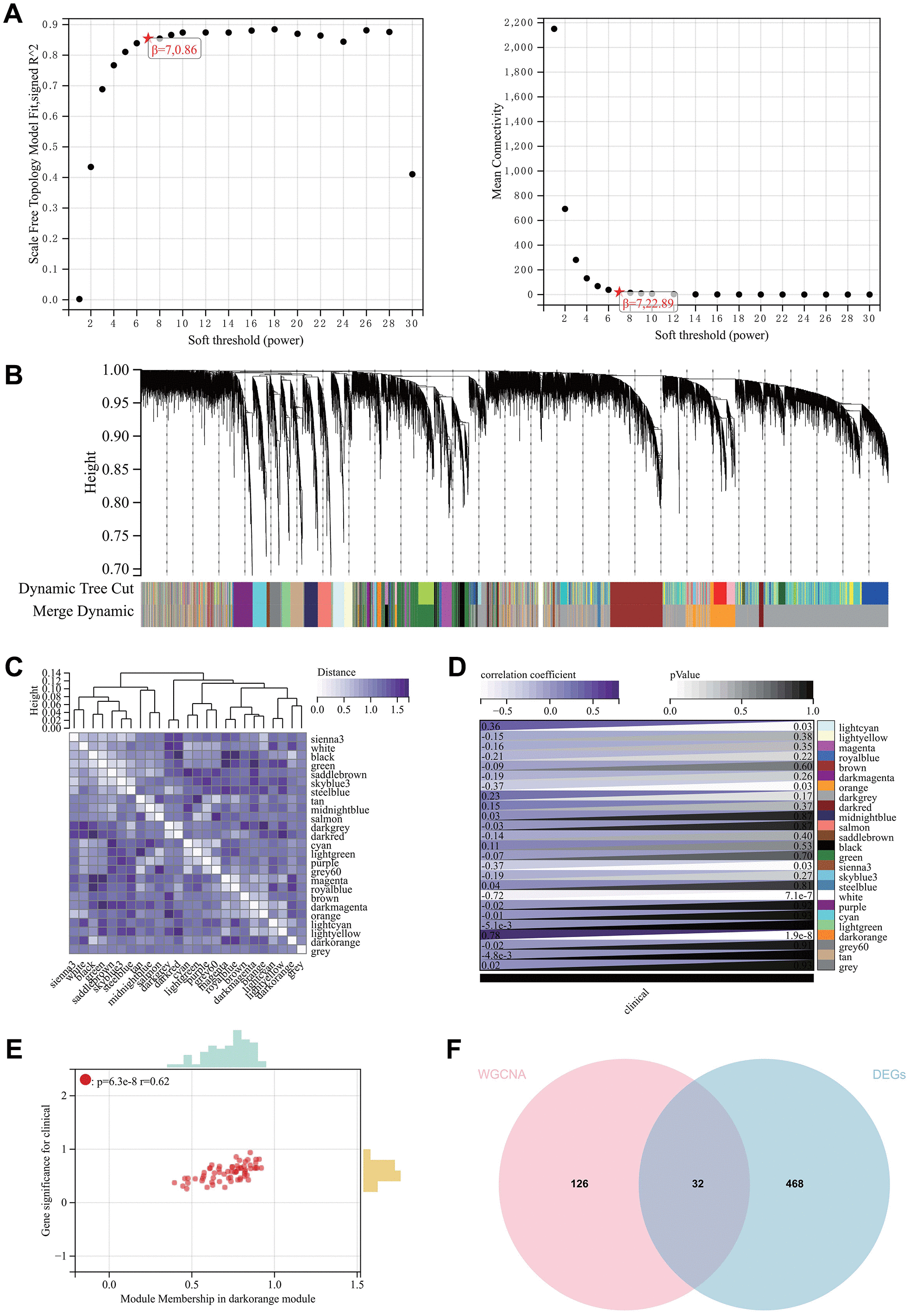

Figure 3. WGCNA. (A) β = 6,0.86. β = 6, 22.89. (B, C) The hierarchical clustering tree of all genes was constructed, and 25 important modules were generated. (D) The heat map of correlation between modules and phenotypes. (E) The scatter map of correlation between GS and MM of related hub genes. (F) The DEGs screened by WGCNA and DEGs were used to obtain Venn map. 32 intersection genes were obtained.
