Research Paper Volume 16, Issue 10 pp 8667—8686
Identification of a novel matrix metalloproteinases-related prognostic signature in hepatocellular carcinoma

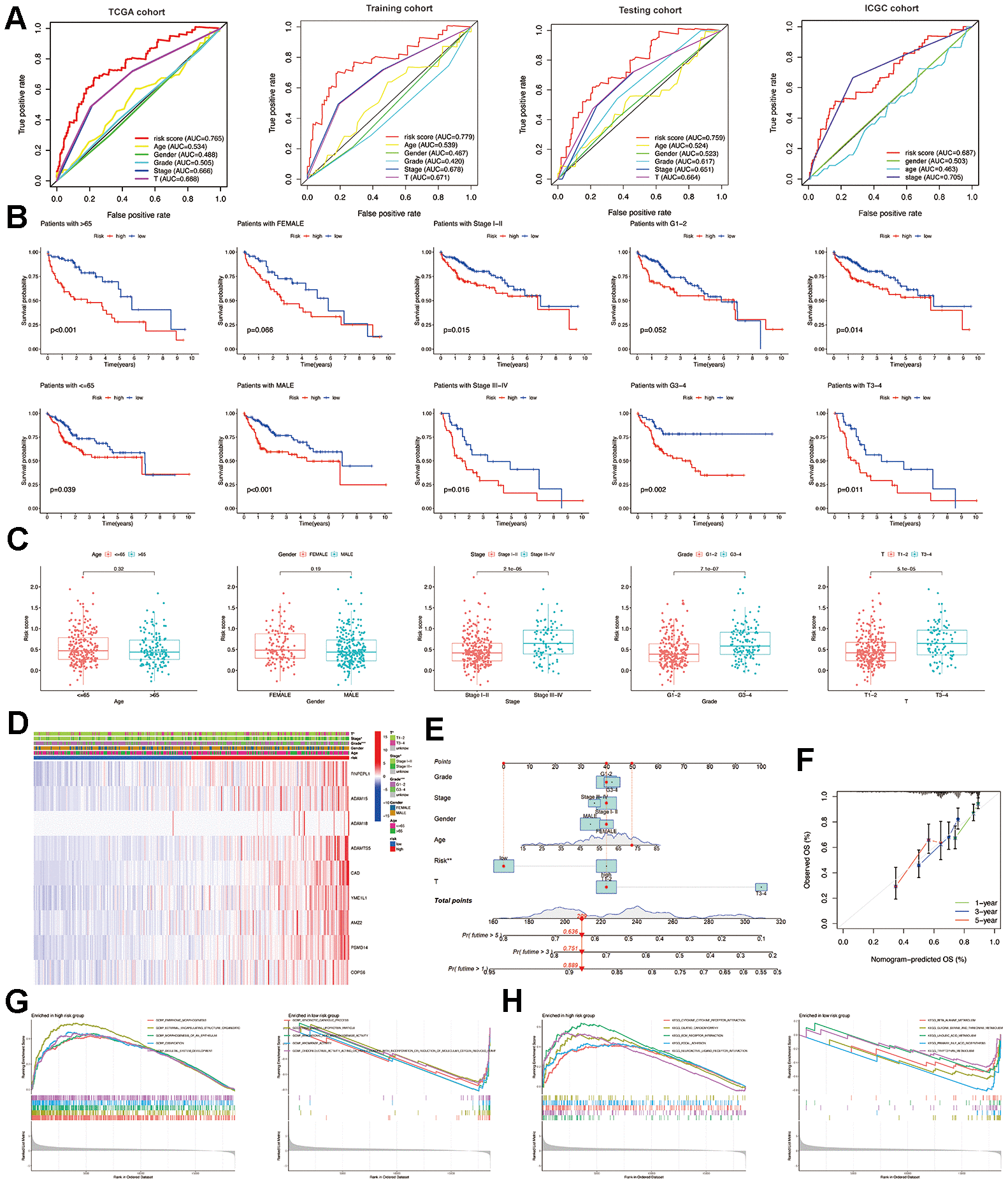

Figure 5. Relationship between risk score and clinicopathological features. (A) Multi-index ROC curve of the MMPs-related prognostic signature in TCGA-LIHC and ICGC-LIRI-JP cohorts. (B) Comparison of the predictive role of risk score for multiple clinicopathological features. (C) Comparison of risk scores for multiple clinicopathological features. (D) Summarized heatmap of the distribution of clinical characteristics and the MMPs-related prognostic signature in TCGA. (E) Nomogram for the quantitative prediction of 1-, 3-, and 5-year survival. (F) Calibration plots for predicting 1-, 3-, and 5-year survival. (G) The results of GO annotation for low-risk and high-risk groups by GSEA. (H) The KEGG annotation results of low-risk and high-risk groups by GSEA.
