Figure 6 — PROS1 is a crucial gene in the macrophage efferocytosis of diabetic foot ulcers: a concerted analytical approach through the prisms of computer analysis

Research Paper|Volume 16, Issue 8|pp. 6883–6897

PROS1 is a crucial gene in the macrophage efferocytosis of diabetic foot ulcers: a concerted analytical approach through the prisms of computer analysis

Back to articleFigure 6(6 of 7)

100%

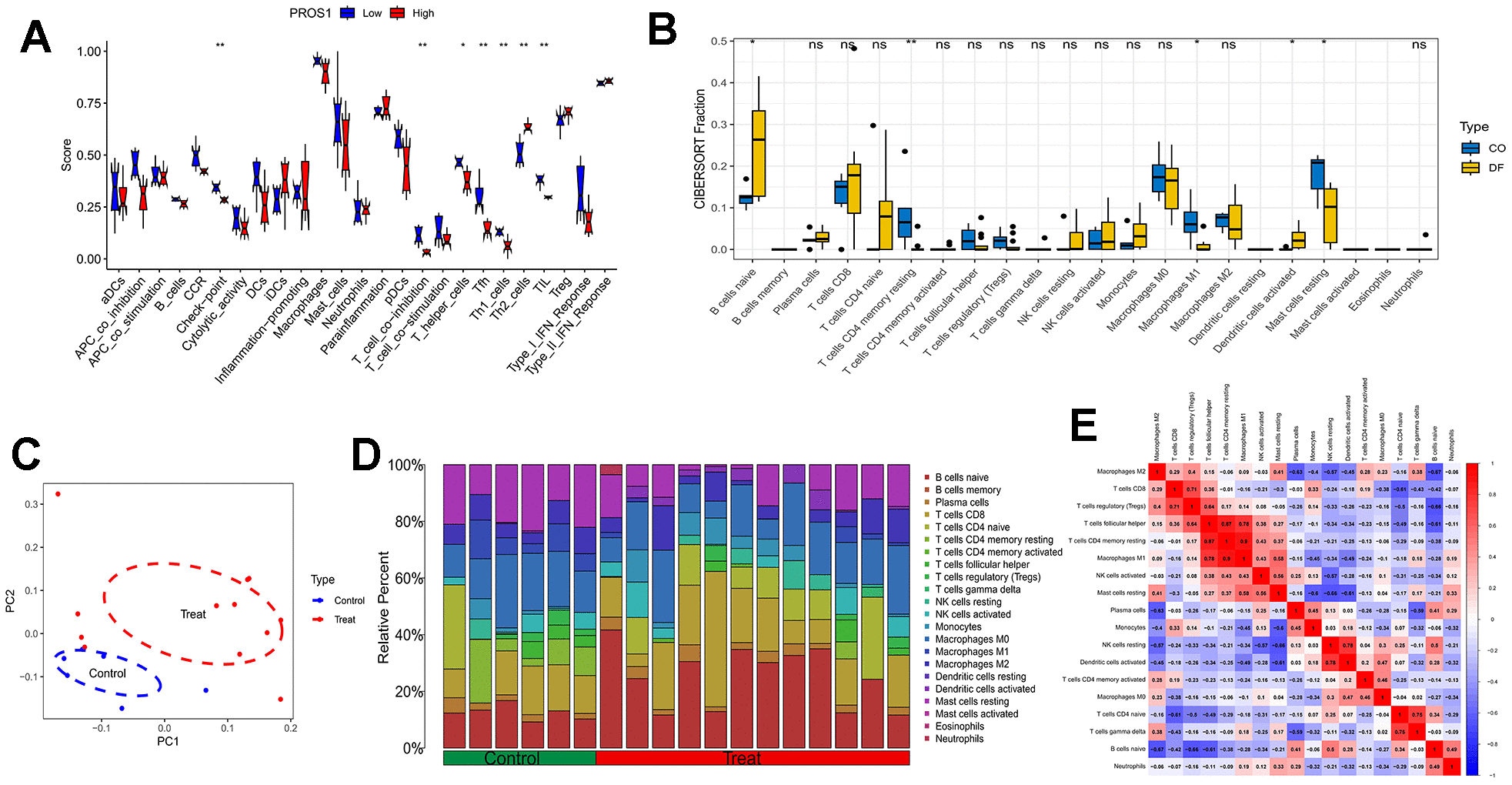

Figure 6.Immune analysis. (A) Immune functional analysis of the PROS1 gene; (B) DFU immune infiltration analysis; (C) PCA analysis of immune infiltration results; (D) Immune cell distribution; (E) Immune cell correlation analysis.
