Figure 2 — Identification and validation of DHCR7 as a diagnostic biomarker involved in the proliferation and mitochondrial function of breast cancer

Research Paper|Volume 16, Issue 7|pp. 5967–5986

Identification and validation of DHCR7 as a diagnostic biomarker involved in the proliferation and mitochondrial function of breast cancer

Back to articleFigure 2(2 of 9)

100%

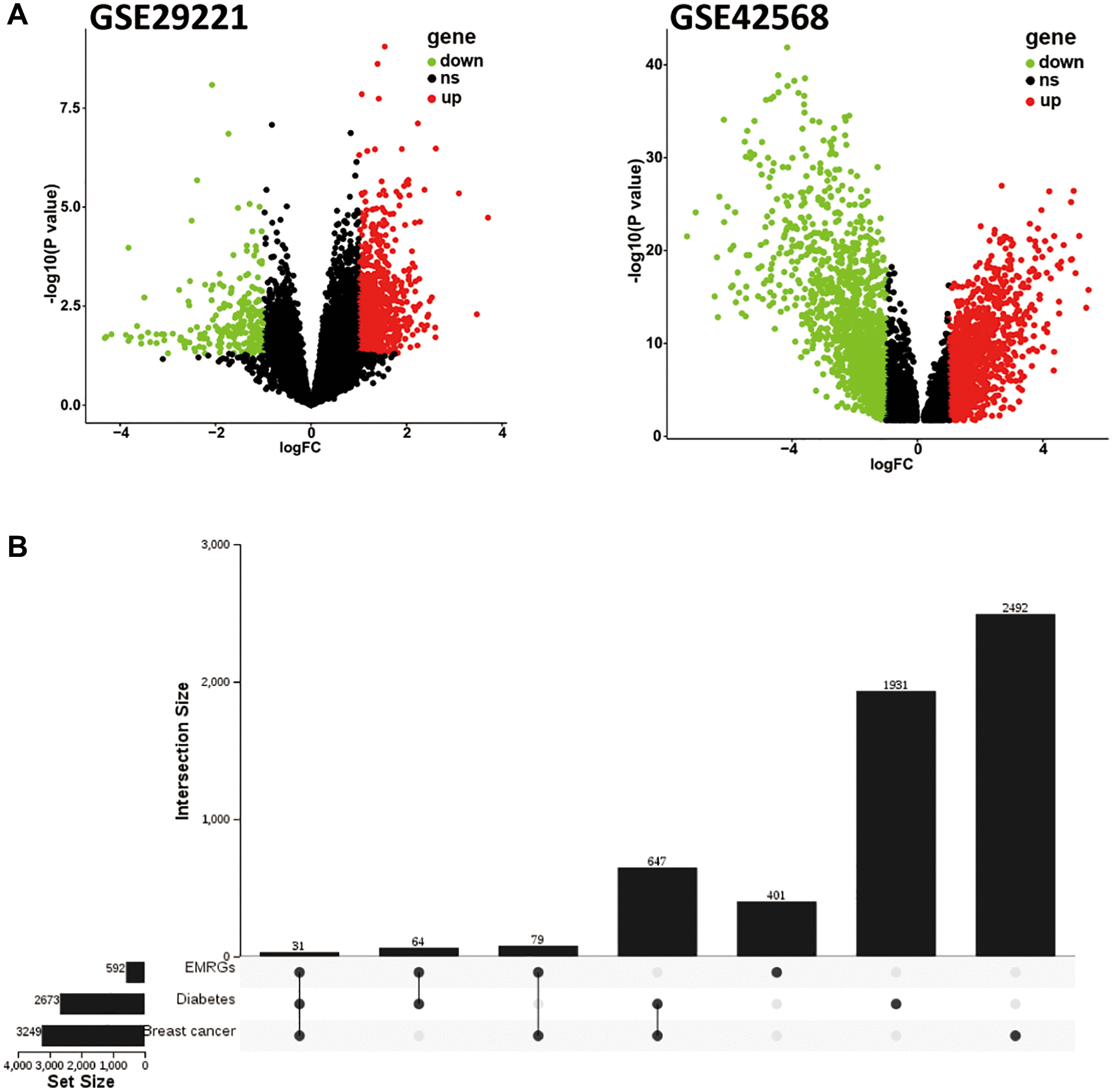

Figure 2.Identification of EMRGs in BC. (A) Volcano plots of DEGs in breast cancer (GSE42568) and diabetes mellitus (GSE29221). (B) UpSet Venn diagram showing the most common EMRGs. Black points: ns (no significant); Red points: up-regulated genes; Green points: down-regulated genes.
