Identification of key pathways and mRNAs in interstitial cystitis/bladder pain syndrome treatment with quercetin through bioinformatics analysis of mRNA-sequence data

Guang Wang; Pei Li; Si-Wei Su; Rui Xu; Zi-Ye Huang; Tong-Xin Yang; Jiong-Ming Li

doi:doi:10.18632/aging.205682

← Back

Research Paper Volume 16, Issue 7 pp 5949—5966

Identification of key pathways and mRNAs in interstitial cystitis/bladder pain syndrome treatment with quercetin through bioinformatics analysis of mRNA-sequence data

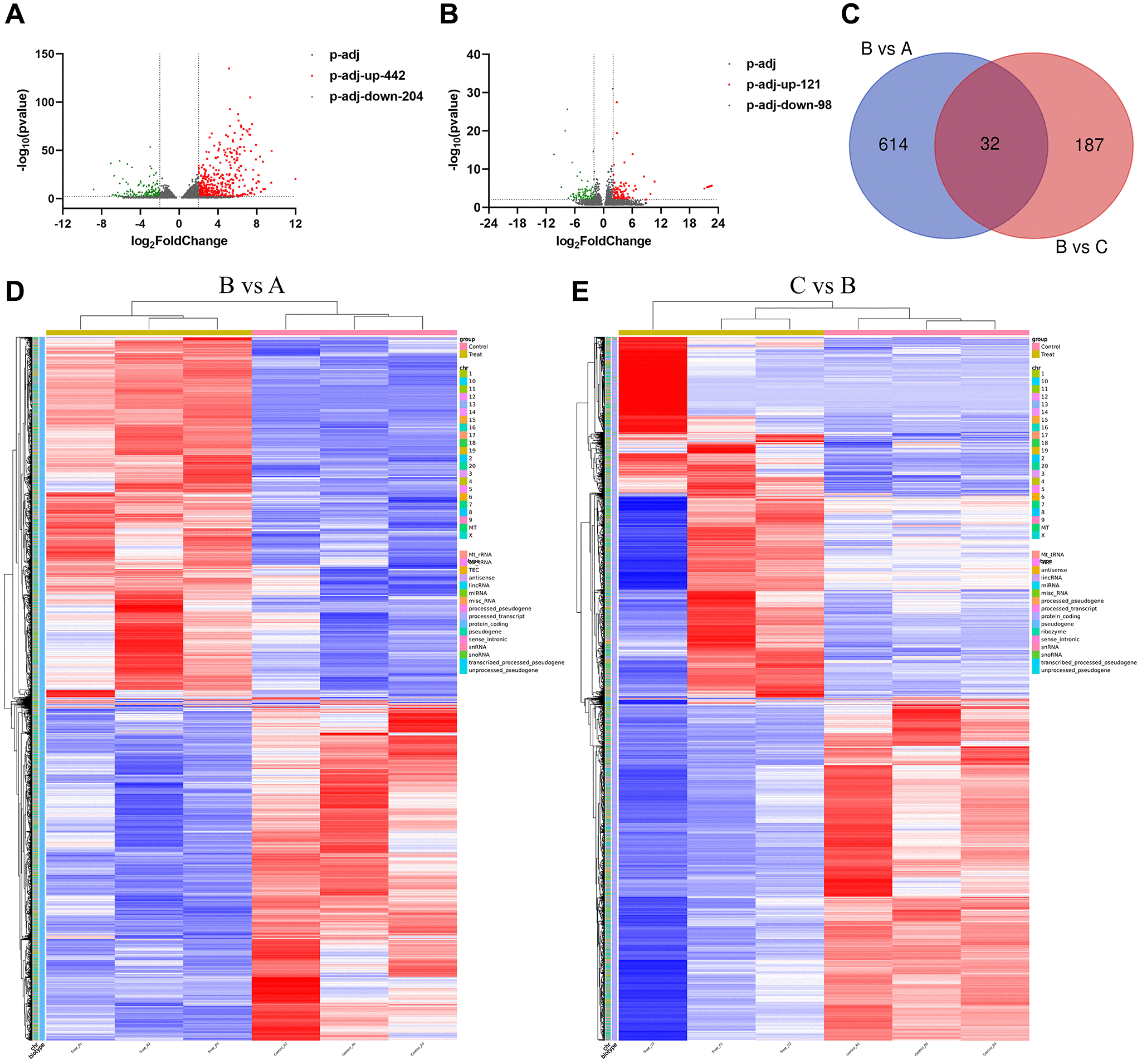

Figure 3. The expression of mRNA in different groups. (A) Volcano map of differential mRNA between B group and A group. (B) Volcano map of differential mRNA between B and C group. (C) Venn diagram of DE mRNAs in B vs. A and C vs. B group. (D) DE genes clustering heat map between B and A group. (E) Differential gene clustering heat map between B and C group. A: Ctrl group. B: IC/BPS group. C: IC/BPS+QCT group.
