Research Paper Volume 16, Issue 6 pp 5634—5650
Identification and validation of ferroptosis-related gene SLC2A1 as a novel prognostic biomarker in AKI

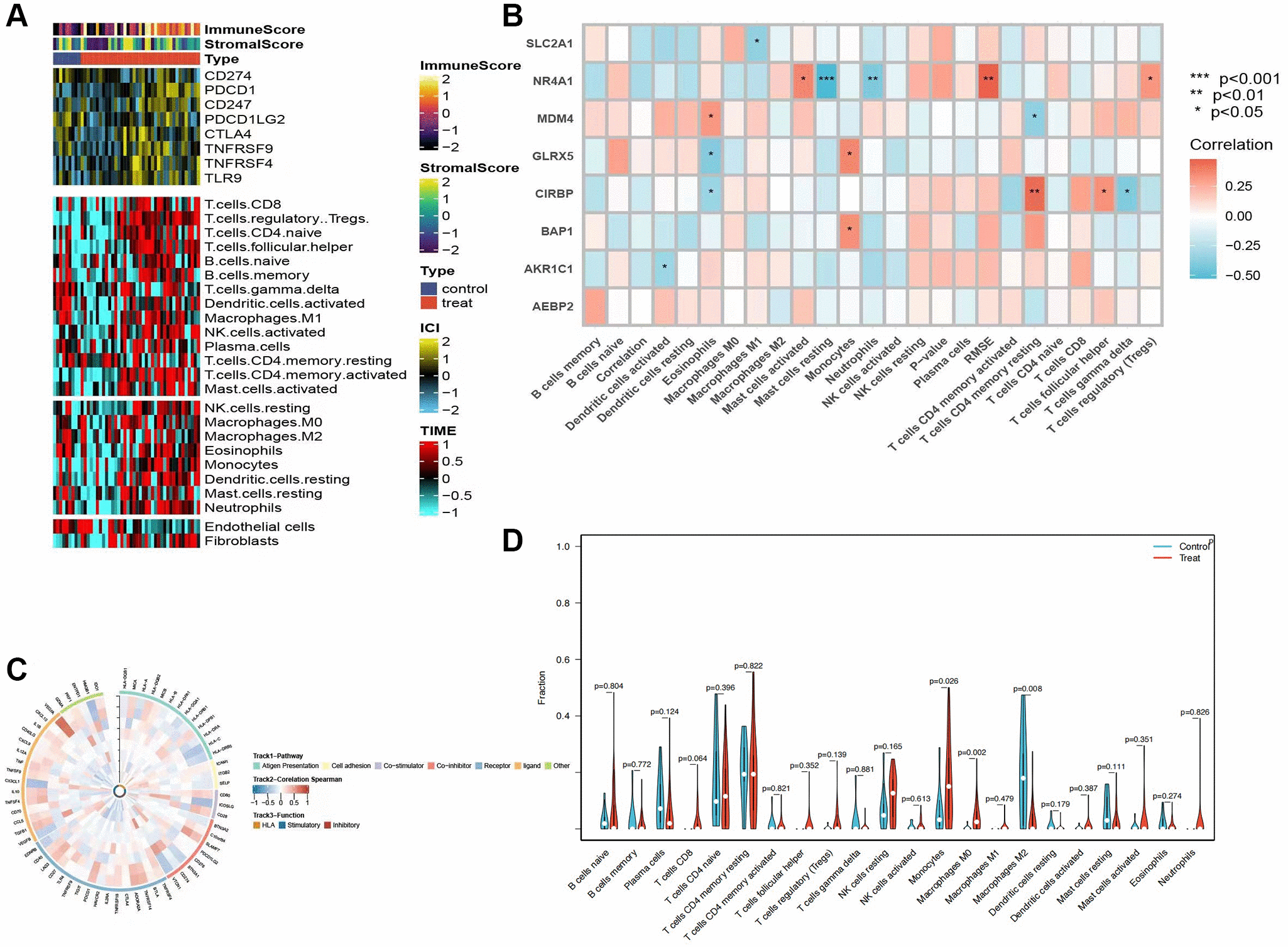

Figure 5. Analysis of immune infiltrations. (A) Heatmap showing the results of immune cell infiltration in the tumor microenvironment (TME) in AKI using multiple algorithms, including data from the TIMER and MCP-counter platforms. TME-related scores are displayed in the top bar. (B) Correlations between eight hub genes and 22 immune-related cells. (C) Correlation analysis between nine hub genes and 75 immune-associated genes. (D) Comparison of the proportions of 22 immune-related cells between control and treated groups.
