Figure 9 — Network pharmacology and transcriptomic profiling elucidate the therapeutic effects of Ranunculus ternatus Thunb on liver fibrosis via MK3-NF-κB inhibition

Research Paper|Volume 16, Issue 5|pp. 4759–4777

Network pharmacology and transcriptomic profiling elucidate the therapeutic effects of Ranunculus ternatus Thunb on liver fibrosis via MK3-NF-κB inhibition

Back to articleFigure 9(9 of 9)

100%

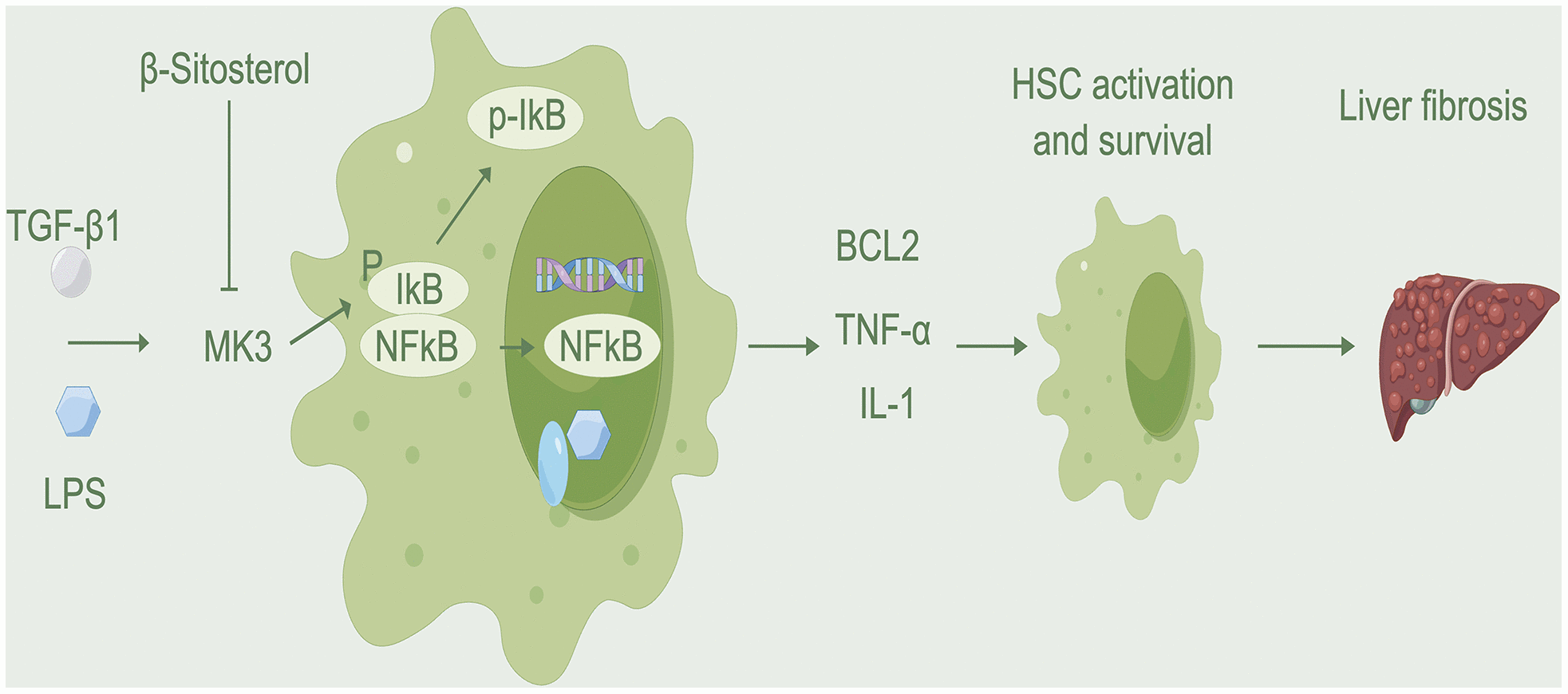

Figure 9.Mechanism diagram. β-sitosterol inhibits the binding of MK3 to IκB, reduces the activation of MK3 and IκB, promotes HSC apoptosis, and alleviates liver fibrosis.
