Research Paper Volume 16, Issue 5 pp 4759—4777

Network pharmacology and transcriptomic profiling elucidate the therapeutic effects of Ranunculus ternatus Thunb on liver fibrosis via MK3-NF-κB inhibition

class="figure-viewer-img"

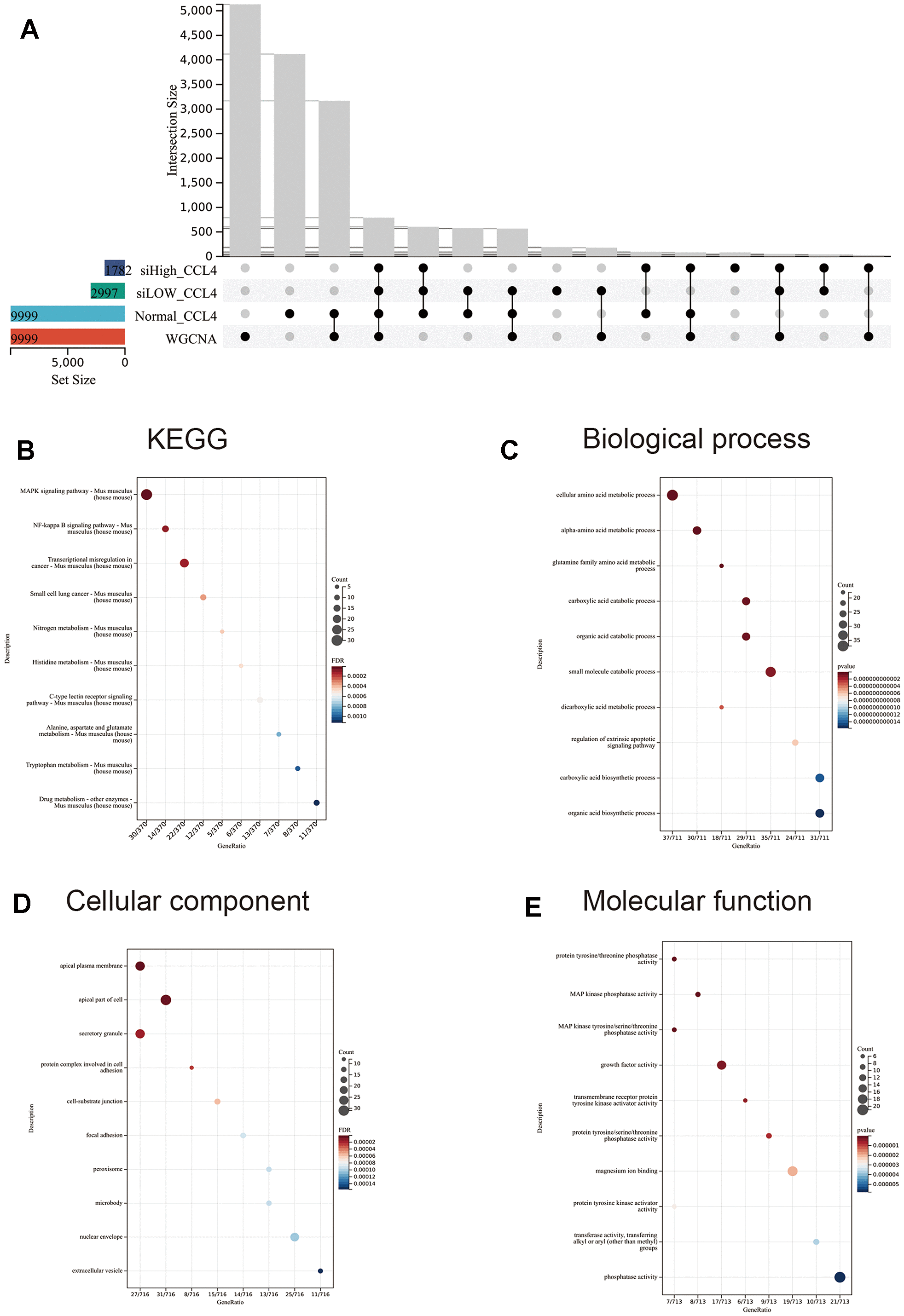

Figure 7. WGCNA was intersected with the three groups of differential genes taken for GO and KEGG analysis. (A) Upset diagram with a selection of four groups of commonly expressed modules. (BE) GO and KEGG analyses were performed according to the modules co-expressed by the four groups. The top 10 significantly enriched (p < 0.05) terms for BP, CC and MF and the top 10 significantly enriched terms for KEGG were selected. The Y-axis represents the number of enrichments for the target and the X-axis represents the GO category of the target gene.
