Research Paper Volume 16, Issue 4 pp 3612—3630
New insights into ginsenoside Rg1 regulating the niche to inhibit age-induced germline stem cells depletion through targeting ECR/BMP signaling pathway in Drosophila

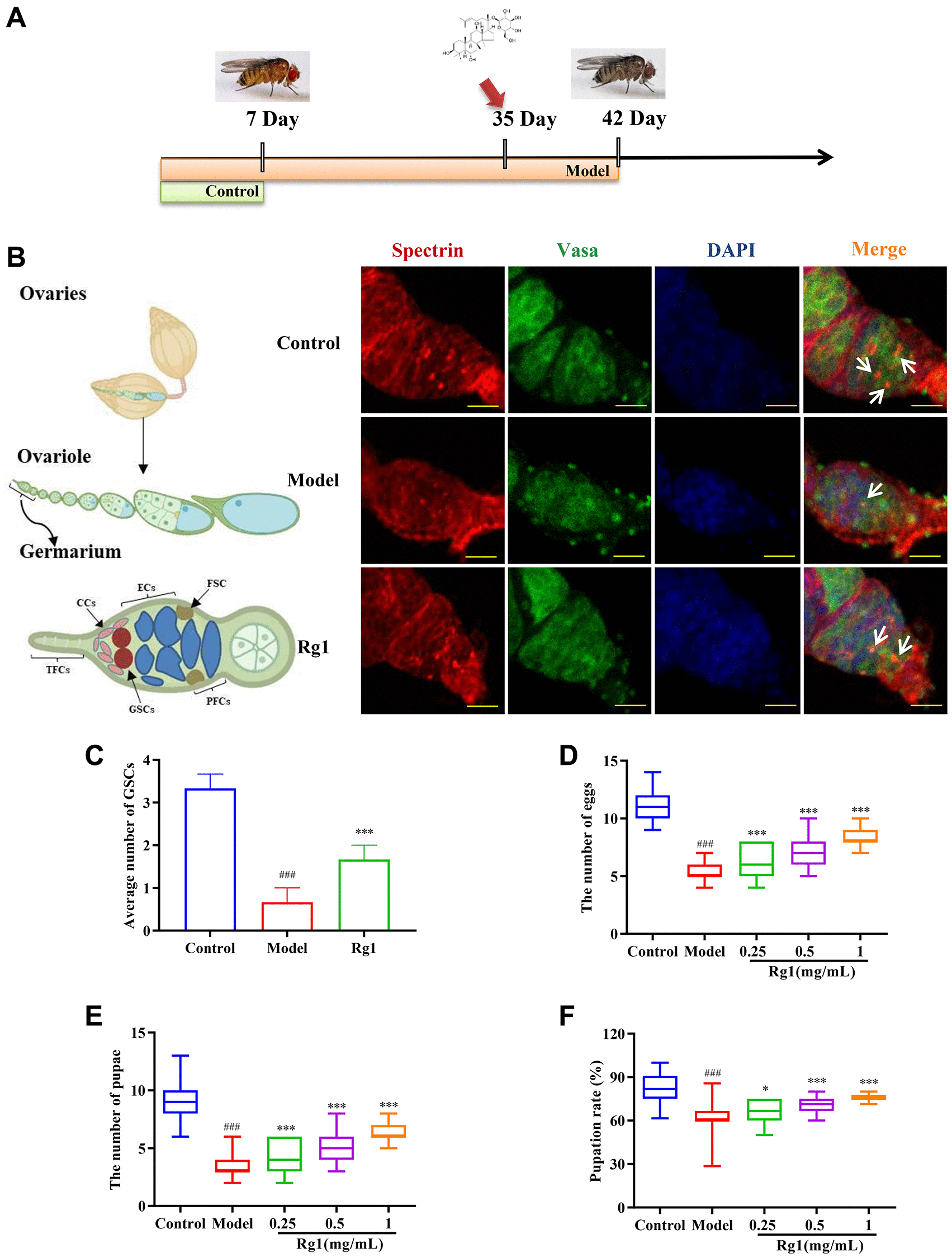

Figure 1. Effects of ginsenoside Rg1 on GSCs regeneration. (A) Design procedures for animal experiment; (B) GSCs are labeled with α-spectrin antibody (red, fusions), Vasa antibody (green, germ cells), and DAPI (blue, nuclei), Scale bar: 10 μm; (C) Average number of GSCs; (D) Number of eggs (n = 100); (E) Number of pupae (n = 100); (F) Pupation rate. Results were analyzed with one-way ANOVA. Data are shown as the mean ± SD; ###p < 0.001 compared with Control (7-day-old female Drosophila); *p < 0.05, ***p < 0.001 compared with Model (35-day-old female Drosophila).
