Research Paper Volume 16, Issue 3 pp 2542—2562
Identification and validation of an H2AZ1-based index model: a novel prognostic tool for hepatocellular carcinoma

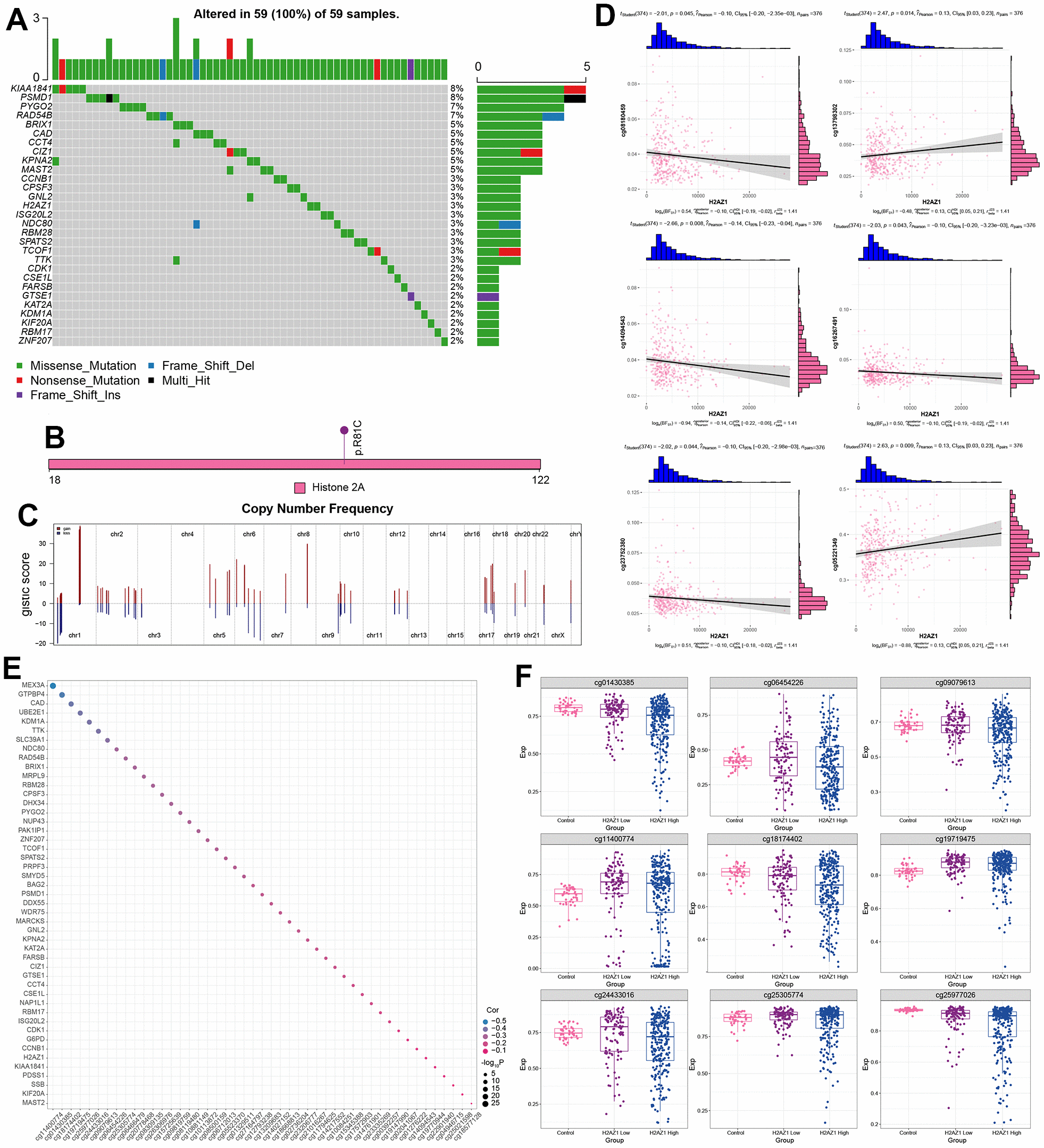

Figure 7. Multi-omics landscape of the global regulatory network of H2AZ1-based index genes. (A) Waterfall plot showing the mutational landscape (SNP) of H2AZ1-based index gene global regulatory network in liver cancer. (B) Lollipop diagram showing details of H2AZ1 mutation in liver cancer. (C) Chromosome bar graph showing the copy number spectrum of H2AZ1-based index gene global regulatory network in liver cancer. (D) Scatter plots of serial correlations showing the correlation of H2AZ1-based index gene global regulatory network in the methylation modification level and transcription level of liver cancer. (E) Bubble plot showing H2AZ1-based index genes are regulated by methylation. (F) Series of box plots showing the methylation level of H2AZ1-based index gene global regulatory network in liver cancer.
