Research Paper Volume 16, Issue 1 pp 348—366
SNRPB promotes the progression of hepatocellular carcinoma via regulating cell cycle, oxidative stress, and ferroptosis

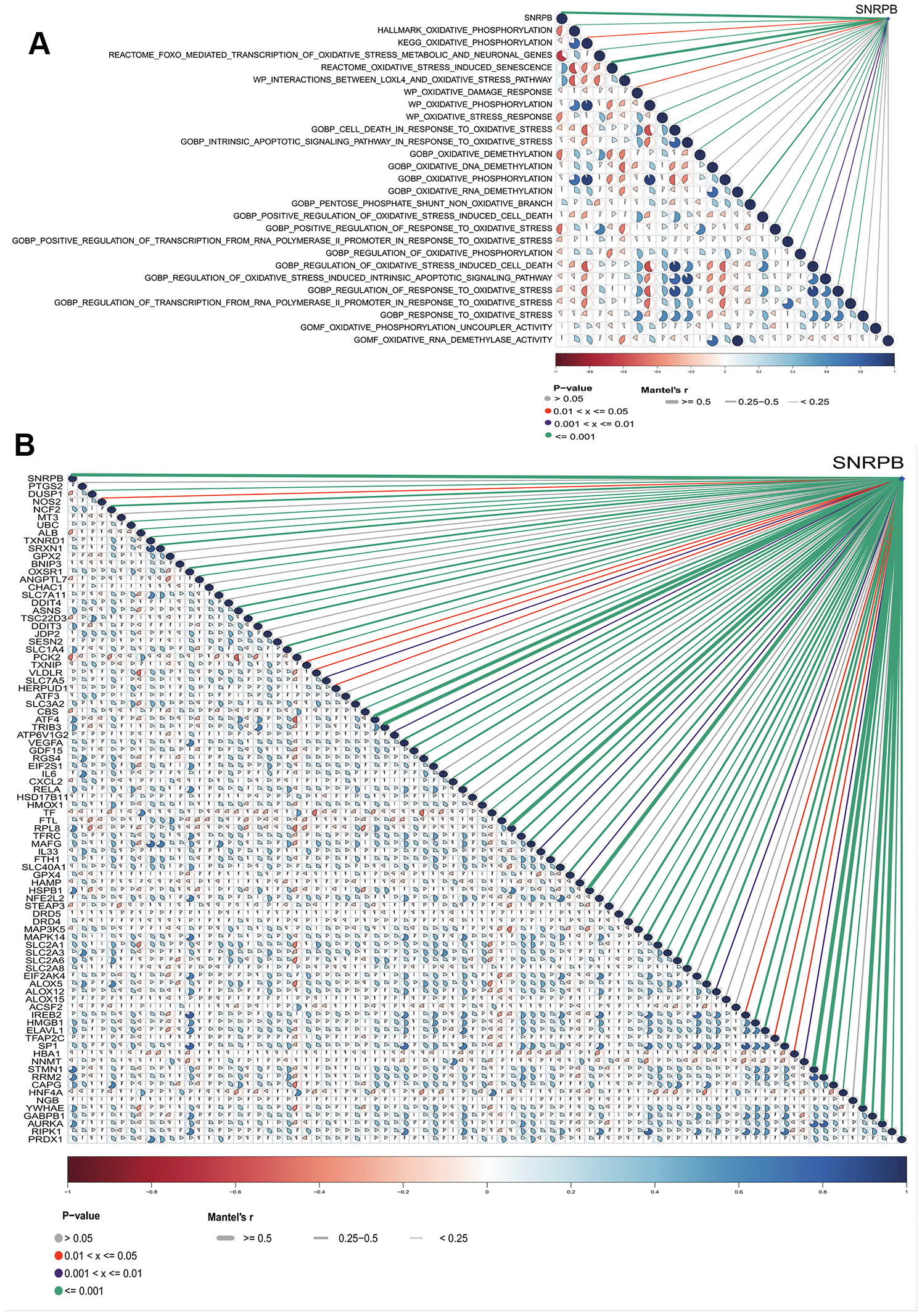

Figure 7. Relationship between SNRPB and oxidative stress-related pathways and oxidative stress-ferroptosis related genes. (A) Correlation analysis between SNRPB and oxidative stress-related pathways in MSigDB database. (B) Correlation analysis between SNRPB and oxidative stress-ferroptosis related genes in GeneCards and FerrDb databases. The color of sectors indicates the correlation (blue = positive, red = negative). The darker the sector color and the larger the sector area, the larger the correlation coefficient. The purple line means p < 0.01, the red line means p < 0.05, the green line means p < 0.001, and the line from thick to thin means the correlation between SNRPB and oxidative stress-ferroptosis related genes from large to small.
