Figure 9 — METTL3-dependent N6-methyladenosine modification is involved in berberine-mediated neuroprotection in ischemic stroke by enhancing the stability of NEAT1 in astrocytes

Research Paper|Volume 16, Issue 1|pp. 299–321

METTL3-dependent N6-methyladenosine modification is involved in berberine-mediated neuroprotection in ischemic stroke by enhancing the stability of NEAT1 in astrocytes

Back to articleFigure 9(9 of 9)

100%

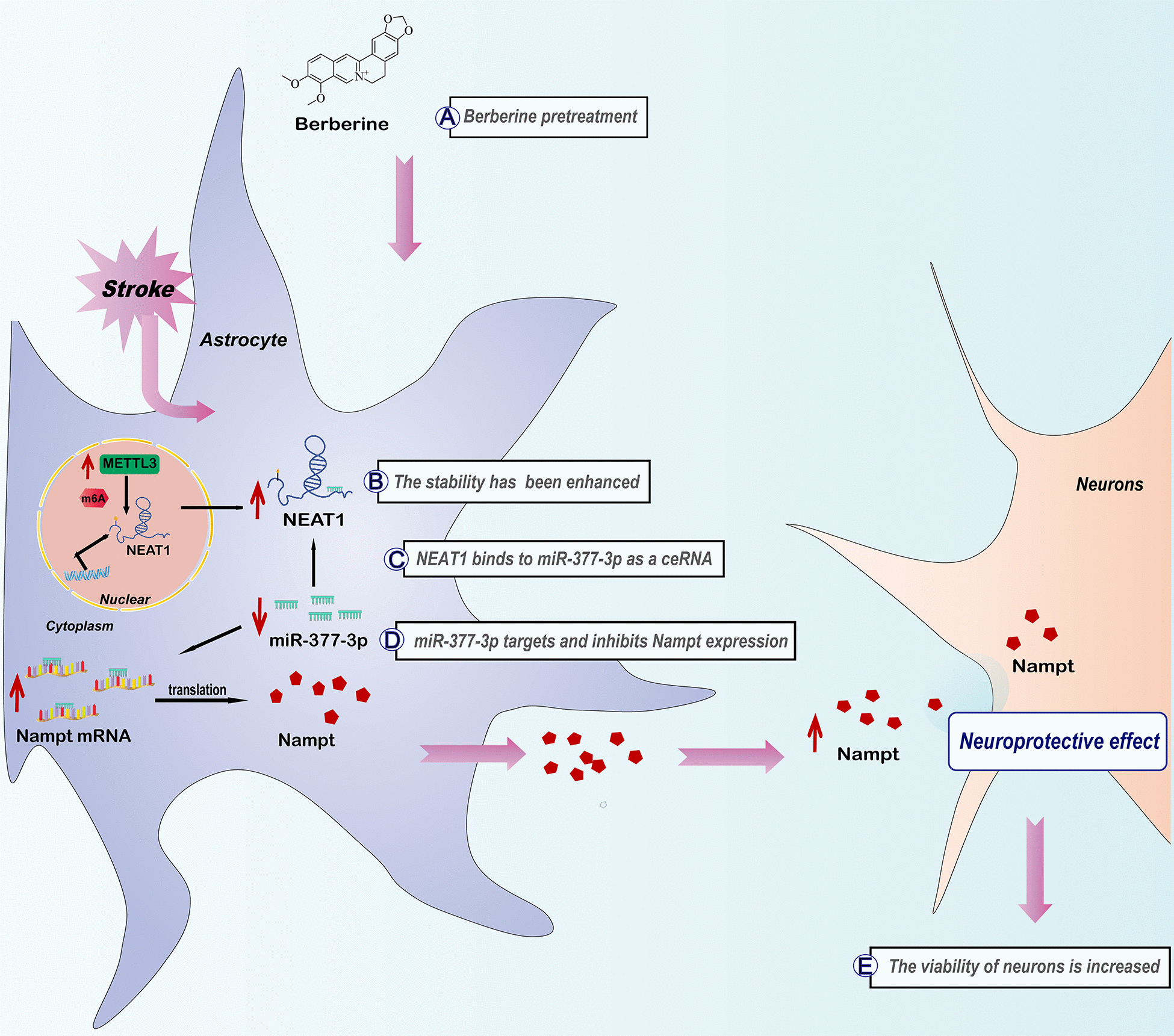

Figure 9.The schematic diagram of molecular mechanism in modulating METTL3-mediated m6A modification of NEAT1 in ischemic stroke by berberine via NEAT1/miR-377-3p/Nampt axis.
