Research Paper Volume 15, Issue 24 pp 15243—15266
Pan-cancer analysis of homeodomain-containing gene C10 and its carcinogenesis in lung adenocarcinoma

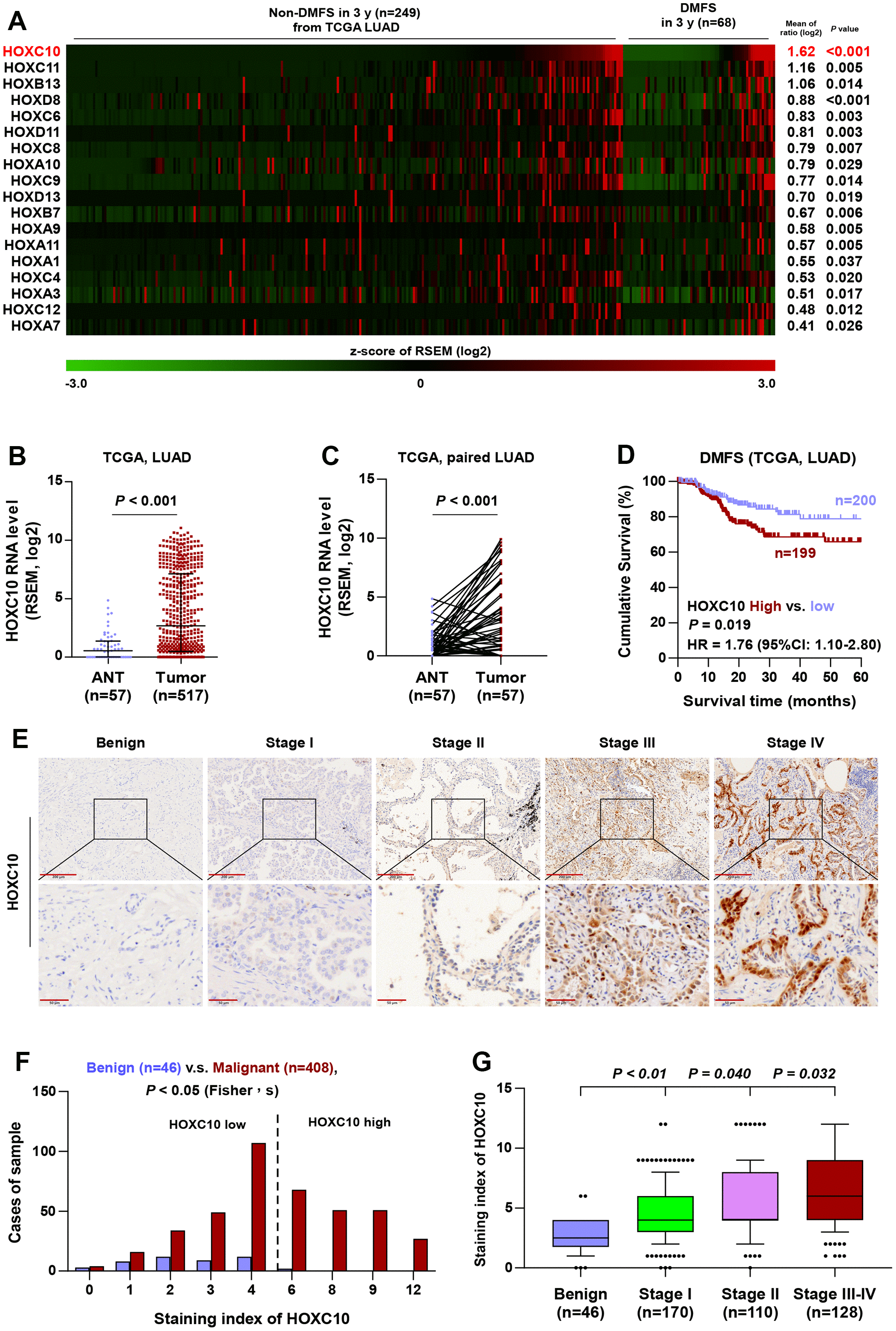

Figure 7. HOXC10 is upregulated in LUAD. (A) High expression of HOX genes in LUAD tissues with distant metastasis by analyzing the dataset of LUAD from TCGA. (B) Comparison of HOXC10 RNA expression between LUAD tissues and the adjacent normal tissues (ANT) in TCGA. (C) Comparison of HOXC10 RNA expression between LUAD tissues and the matched adjacent normal tissues (ANT) in TCGA. (D) Kaplan-Meier survival analysis of DMFS in LUAD patients with low HOXC10 expression versus high HOXC10 expression. (E) Representative images of HOXC10 immunostaining in 46 benign lung lesion and 408 LUAD tissues. (F) The number of lung tissues stratified by staining index of HOXC10. (G) Staining index of HOXC10 in different pathological stage of LUAD.
