Research Paper Volume 16, Issue 1 pp 89—105

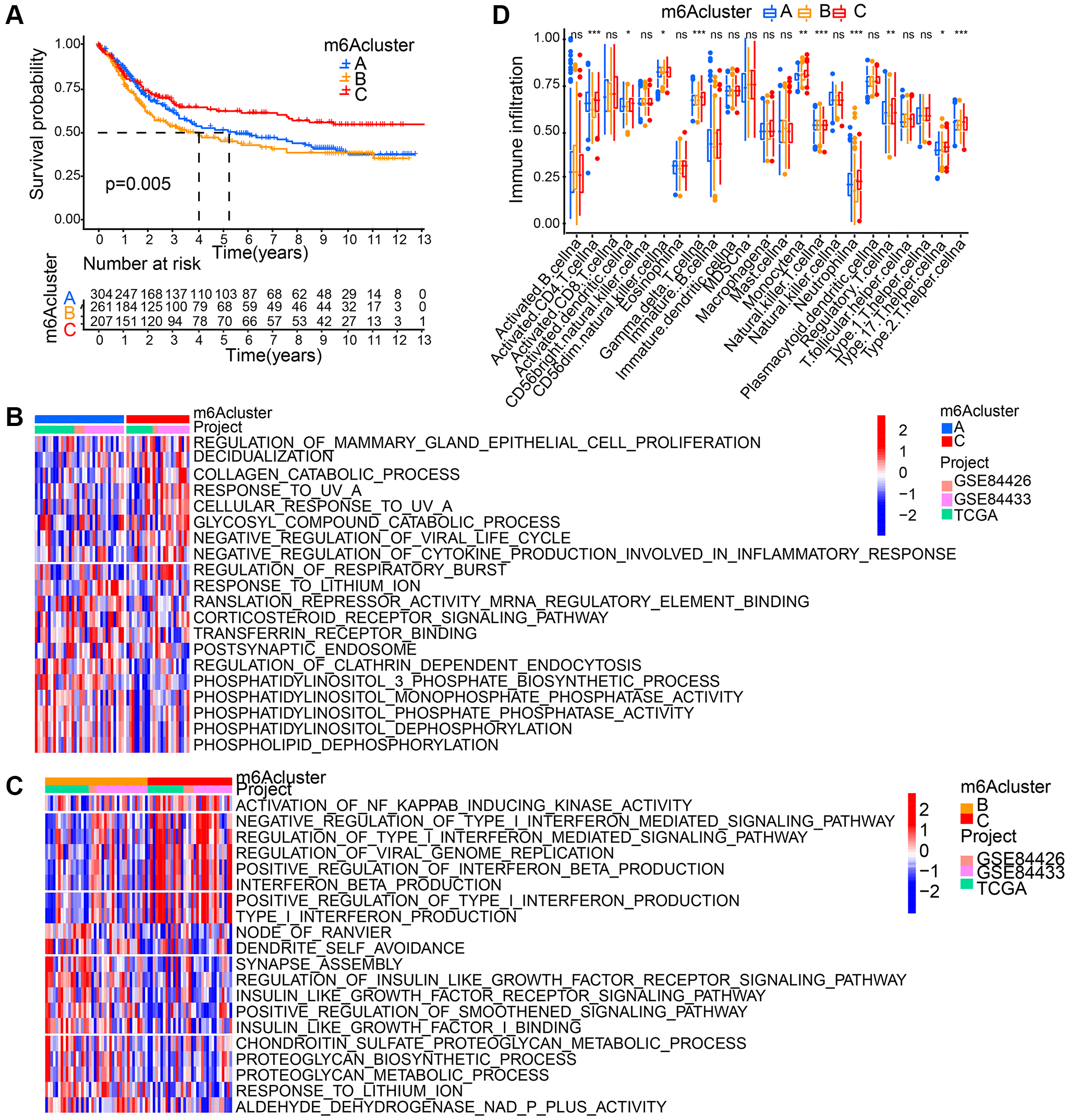

Figure 3. Patterns of m6A methylation modification and biological characteristics of each pattern. (A) Survival analyses for the three m6A modification patterns based on gastric cancer patients from GSE84426, GSE84433, and TCGA data. Kaplan-Meier curves with log-rank p value 0.005 showed a significant survival difference among three m6A modification patterns. (B, C) GSVA enrichment analysis showing the activation states of biological pathways in distinct m6A modification patterns. (D) The abundance of each TME infiltrating cell in three m6A modification patterns. The asterisks represented the statistical p value (^*P < 0.05; ^**P < 0.01; ^***P < 0.001; ns: no significance).
