Research Paper Volume 15, Issue 24 pp 15064—15083

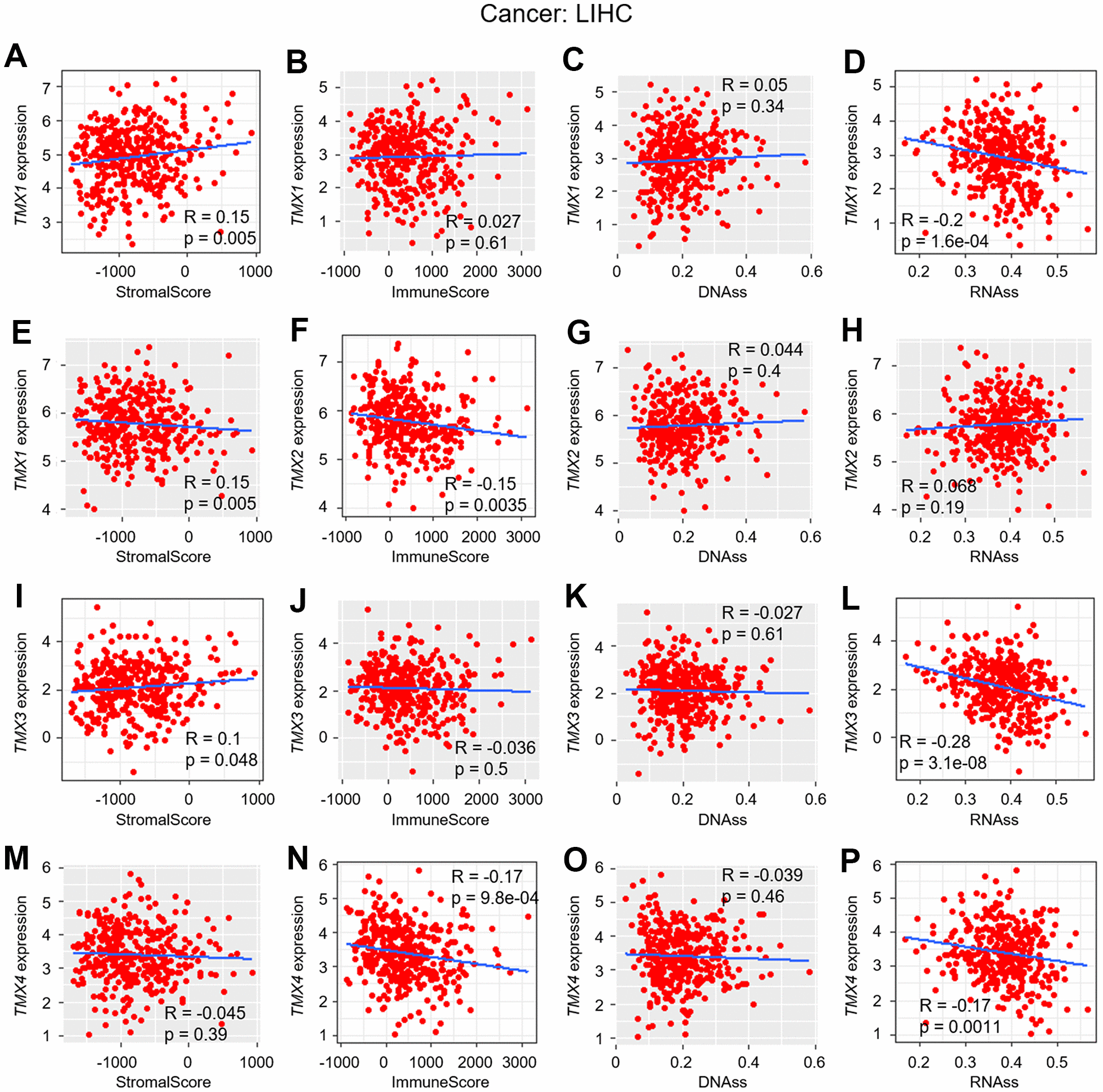

Figure 6. Correlation analysis of TMX family genes expression with TME and stemness score in LIHC. The correlation of TMX1 expression with stromal score (A), immune scores (B), DNAss (C), and RNAss (D). TMX2 expression correlated with stromal score (E), immune scores (F), DNAss (G), and RNAss (H). The correlation of TMX3 expression with stromal score (I), immune scores (J), DNAss (K), and RNAss (L). TMX4 expression correlated with stromal score (M), immune scores (N), DNAss (O), and RNAss (P). Gray brown background indicates no correlation between the gene expression and the corresponding index (p >0.05). Light background indicates that the gene is significantly correlated with the corresponding index (p <0.05). R represents correlation value, R >0 means positive correlation, R <0 means negative correlation.
