Research Paper Volume 15, Issue 24 pp 15064—15083
TMX family genes and their association with prognosis, immune infiltration, and chemotherapy in human pan-cancer

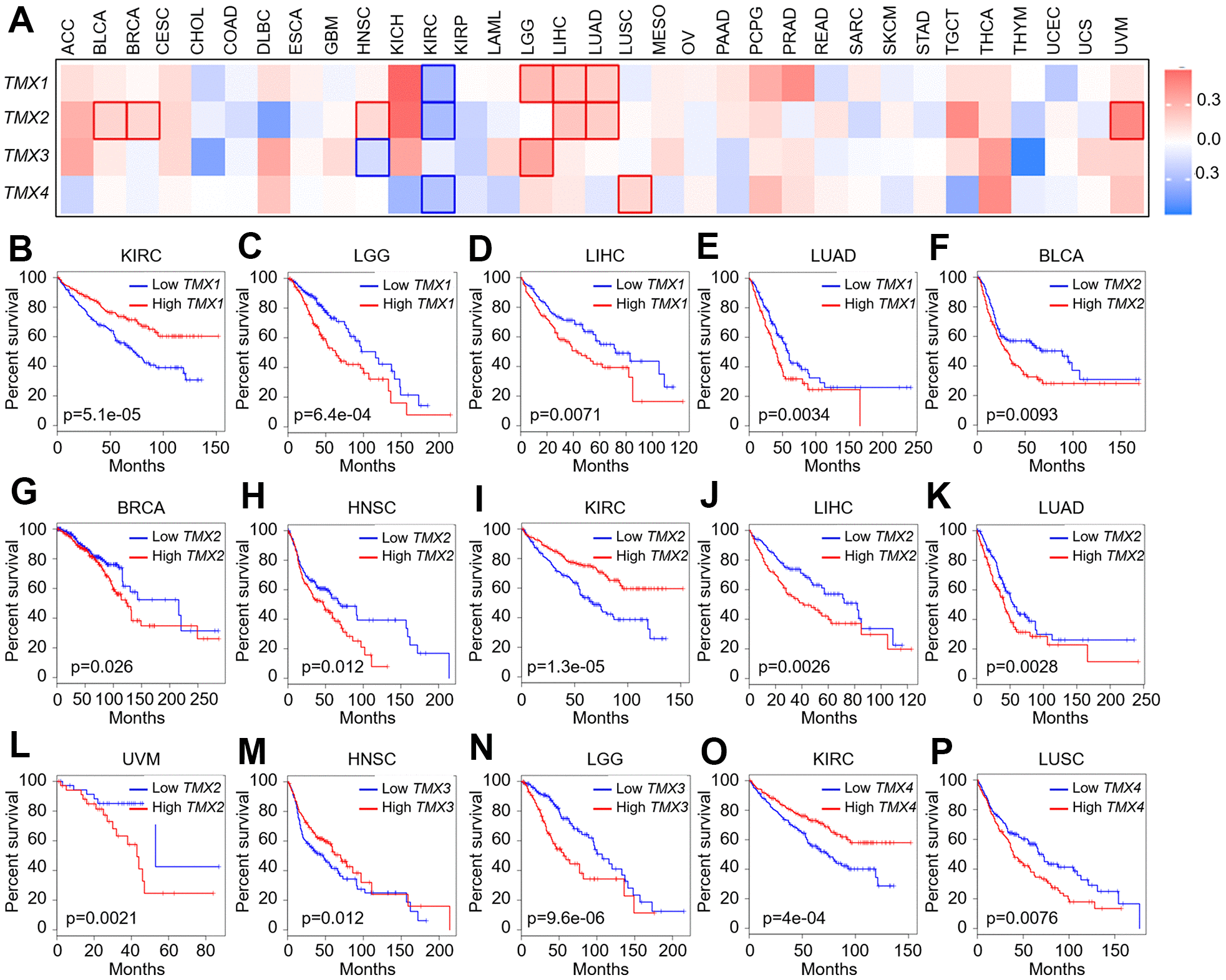

Figure 2. Correlation analysis of TMX family gene expression and overall survival rate in patients with different TCGA tumor types. Using GEPIA2 to construct a survival map of TMX family gene expression (A). The OS curve of TMX1 in different tumors: KIRC (B); LGG (C); LIHC (D); LUAD (E). The OS curve of TMX2 in different tumors: BLCA (F); BRCA (G); HNSC (H); KIRC (I); LIHC (J); LUAD (K); UVM (L). The OS curve of TMX3 in different tumors: HNSC (M); LGG (N). The OS curve of TMX4 in different tumors: KIRC (O); LUSC (P). The expression of TMX family genes was distinguished by different color lines. Red lines indicated high expression, and blue lines indicated low expression.
