Figure 11 — Integrative analysis of single-cell and bulk RNA seq to reveal the prognostic model and tumor microenvironment remodeling mechanisms of cuproptosis-related genes in colorectal cancer

Research Paper|Volume 15, Issue 23|pp. 14422–14444

Integrative analysis of single-cell and bulk RNA seq to reveal the prognostic model and tumor microenvironment remodeling mechanisms of cuproptosis-related genes in colorectal cancer

Back to articleFigure 11(11 of 11)

100%

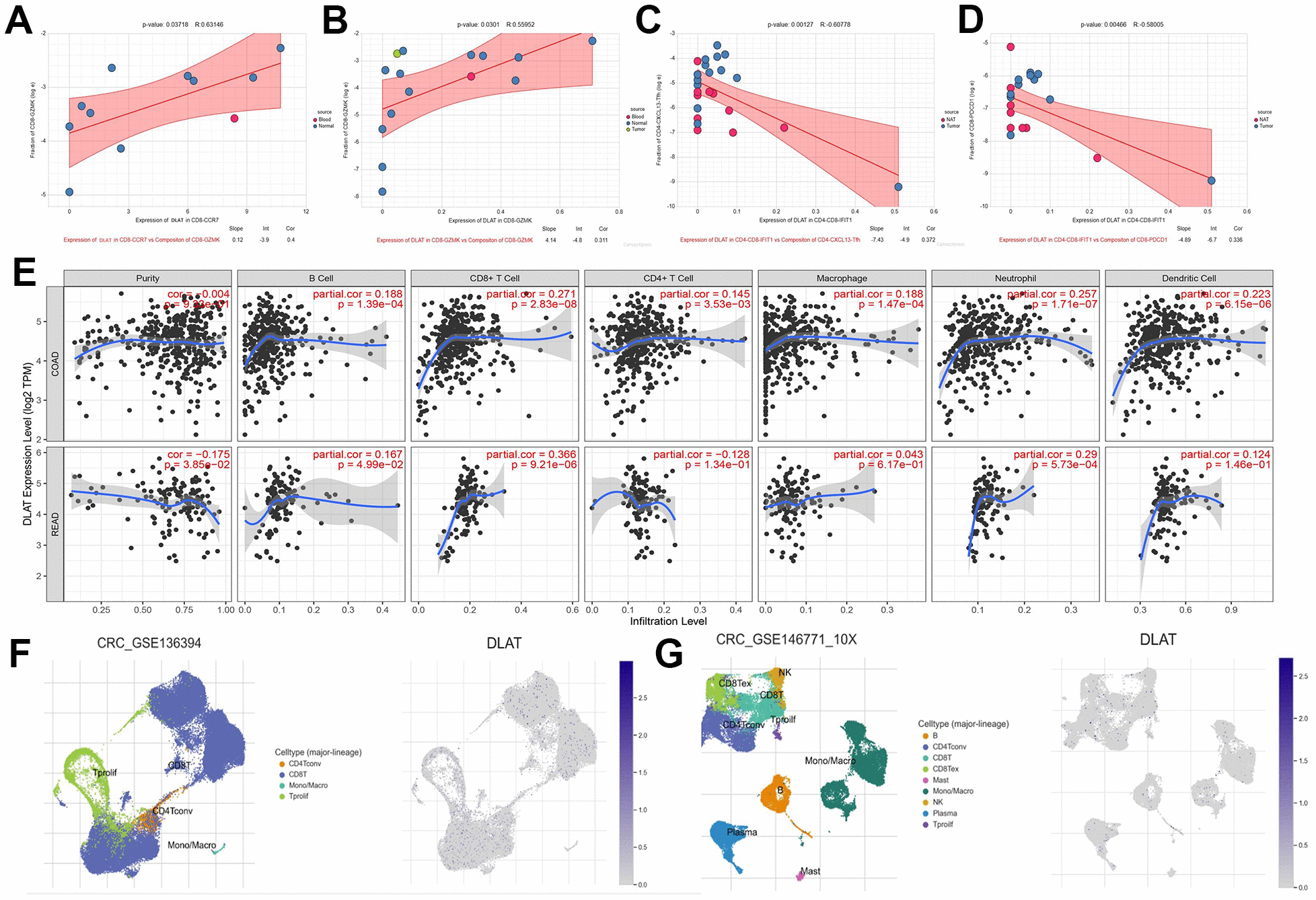

Figure 11.DLAT shapes the positive tumor microenvironment. (A–D) Correlation between expression of DLAT and cell composition (E) DLAT expression and immune cell infiltration. (F) immune cell landscape and DLAT expression distribution after anti-PD-1treatment (G) immune cell landscape and DLAT expression distribution without anti-PD-1 treatment.
