Figure 3 — Modified Chaishao Liujunzi Decoction inhibits bile acid-induced gastric intestinal metaplasia: from network prediction to experimental verification

Research Paper|Volume 15, Issue 23|pp. 13998–14018

Modified Chaishao Liujunzi Decoction inhibits bile acid-induced gastric intestinal metaplasia: from network prediction to experimental verification

Back to articleFigure 3(3 of 11)

100%

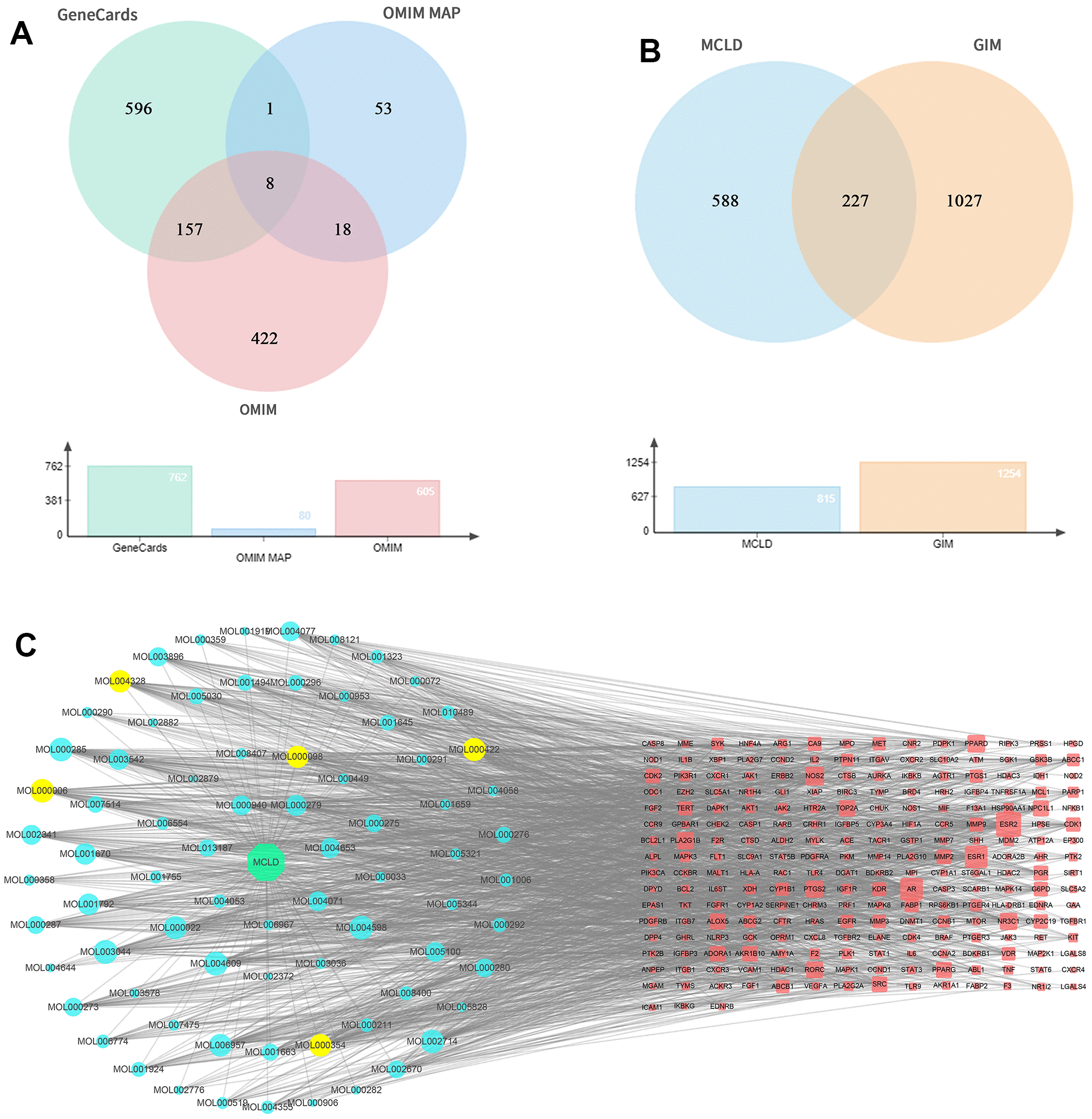

Figure 3.GIM-related targets, common targets, and drug-compound-common target network. (A) GIM target information is obtained through relevant databases. (B) Venny diagram of common targets for MCLD and GIM. (C) Drug-compound-common target network. The red nodes represented the targets of MCLD compounds, whereas the blue and yellow nodes represented MCLD compounds. MOL000098: Quercetin; MOL000422: Kaempferol; MOL000354: Isorhamnetin; MOL000006: Luteolin; MOL004328: Naringenin.
