Identification of circRNA-miRNA-mRNA network as biomarkers for interstitial cystitis/bladder pain syndrome

Shi-Qin Yang; Liao Peng; Le-De Lin; Yuan-Zhuo Chen; Meng-Zhu Liu; Chi Zhang; Jia-Wei Chen; De-Yi Luo

doi:doi:10.18632/aging.205170

← Back

Research Paper Volume 15, Issue 21 pp 12155—12170

Identification of circRNA-miRNA-mRNA network as biomarkers for interstitial cystitis/bladder pain syndrome

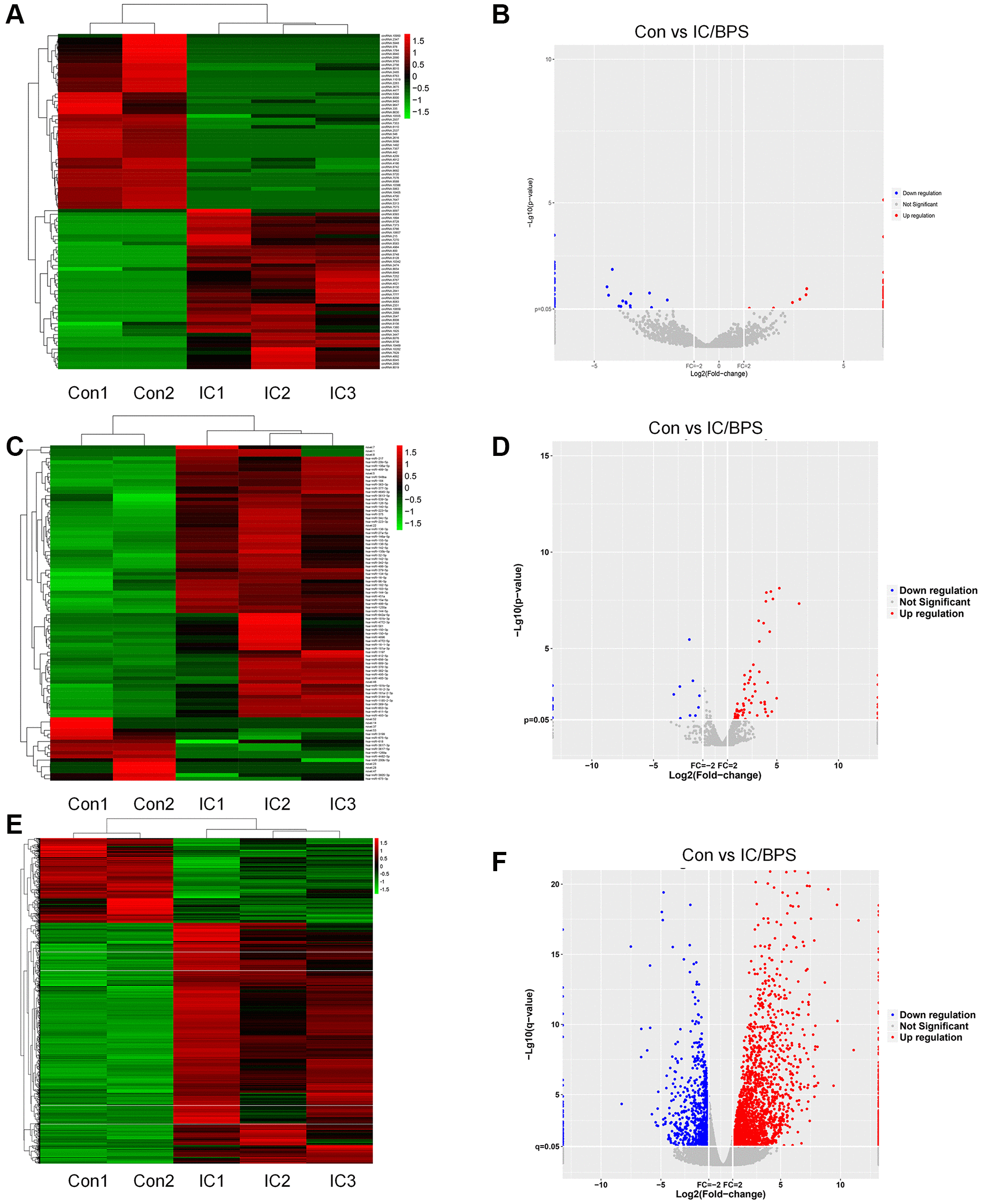

Figure 1. Heatmaps and volcano plots of DEcircRNAs, DEmiRNAs and DEmRNAs in IC/BPS. (A, B) Heatmaps and volcano plots of DEcircRNAs. (C, D) Heatmaps and volcano plots of DEmiRNAs. (E, F) Heatmaps and volcano plots of DEmRNAs.
