Research Paper Volume 15, Issue 20 pp 11331—11368

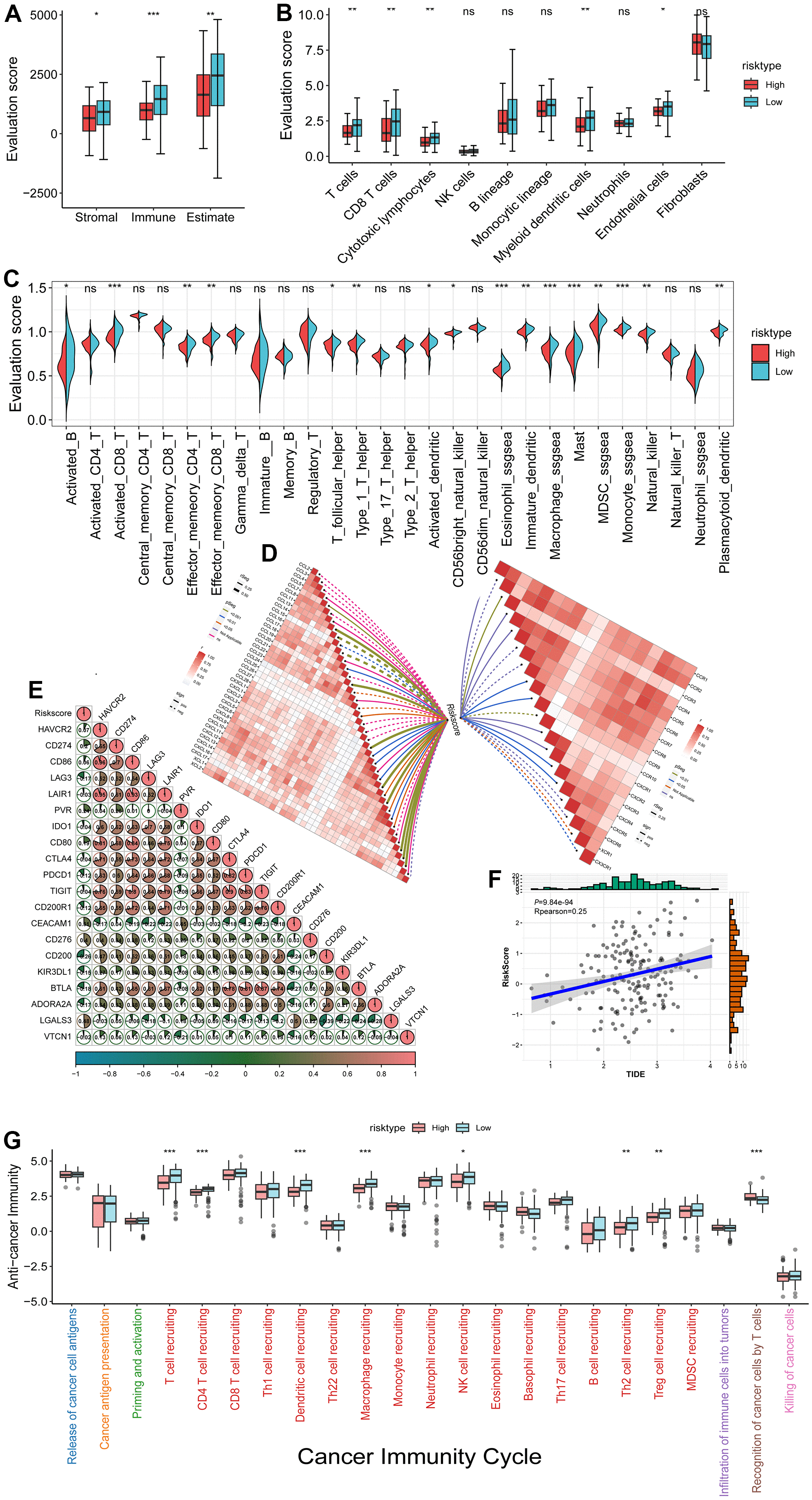

Figure 6. Immune microenvironment analysis in high and low risk groups. (A) Comparison of the Estimate score in high and low-risk groups; (B) MCP-counter immune cell infiltration score was compared between high and low-risk groups; (C) The ssgsea calculated 28 kinds of immune cell infiltration scores in high and low-risk groups. (D) Correlation analysis between risk score and chemokines and receptors; (E) Correlation analysis between risk score and 20 kinds of immune checkpoints; (F) Correlation analysis between risk score and TIDE score (immune escape); (G) TIP calculated comparison of tumor immune cycle step scores in high-low risk groups. *<0.05 **<0.01 ***<0.001.
