Figure 4 — Myeloid-specific knockout of SHP2 regulates PI3K/PLCγ signaling pathway to protect against early myocardial infarction injury

Research Paper|Volume 15, Issue 18|pp. 9877–9889

Myeloid-specific knockout of SHP2 regulates PI3K/PLCγ signaling pathway to protect against early myocardial infarction injury

Back to articleFigure 4(4 of 8)

100%

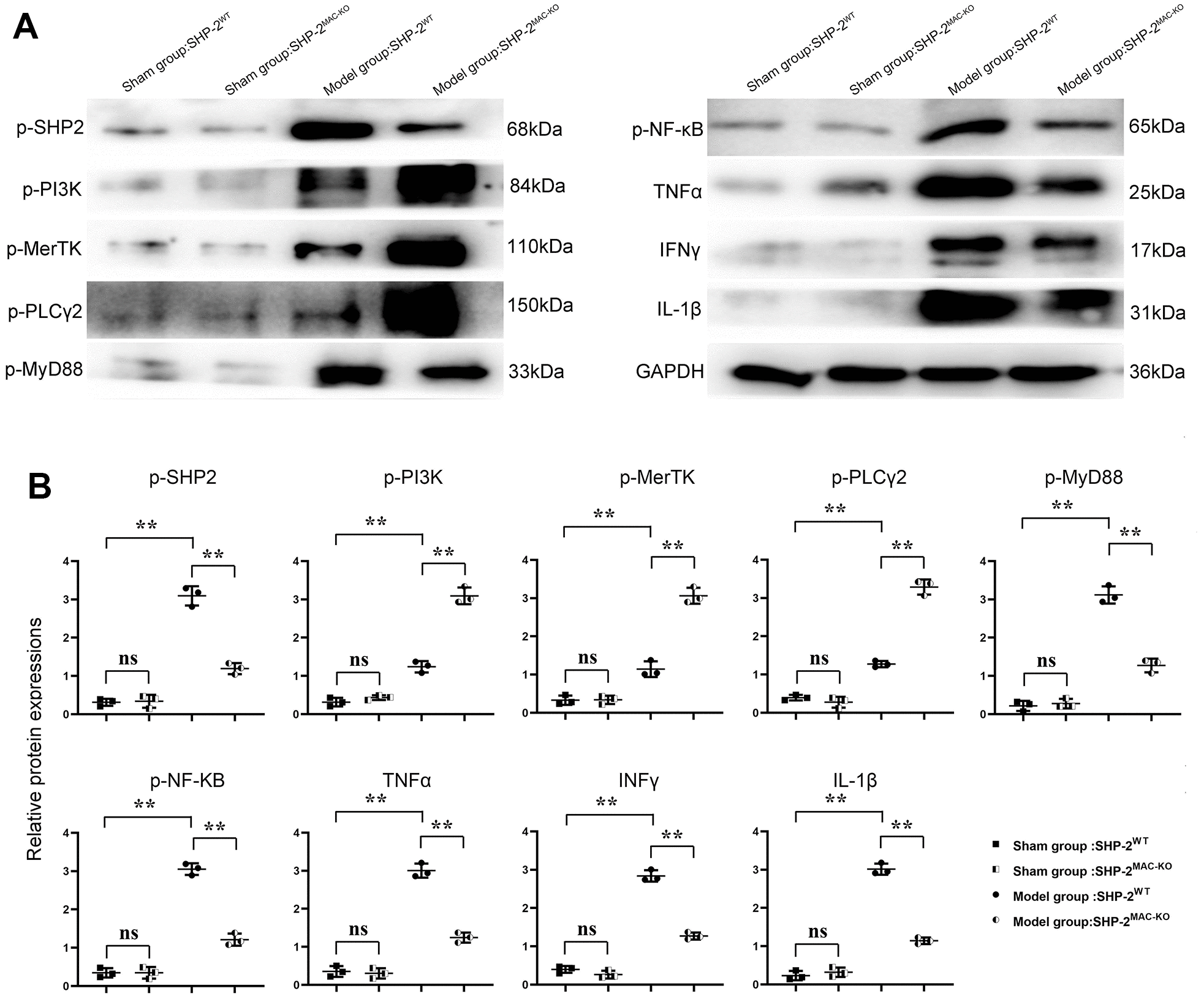

Figure 4.SHP2^MAC-KO can affect the expression of PI3K/PLCγ signaling pathway, the expression of inflammatory factors and proteins related to phagocytic activity. (A) Protein band diagram of p-SHP2, p-PI3K, p-MerTK, p-PLCγ2, p-MyD88, p-NF-κB, TNFα, IFNγ, IL-1β; (B) Relative protein expression of p-SHP2, p-PI3K, p-MerTK, p-PLCγ2, p-MyD88, p-NF-κB, TNFα, IFNγ, IL-1β. **P<0.01.
