Figure 2 — Myeloid-specific knockout of SHP2 regulates PI3K/PLCγ signaling pathway to protect against early myocardial infarction injury

Research Paper|Volume 15, Issue 18|pp. 9877–9889

Myeloid-specific knockout of SHP2 regulates PI3K/PLCγ signaling pathway to protect against early myocardial infarction injury

Back to articleFigure 2(2 of 8)

100%

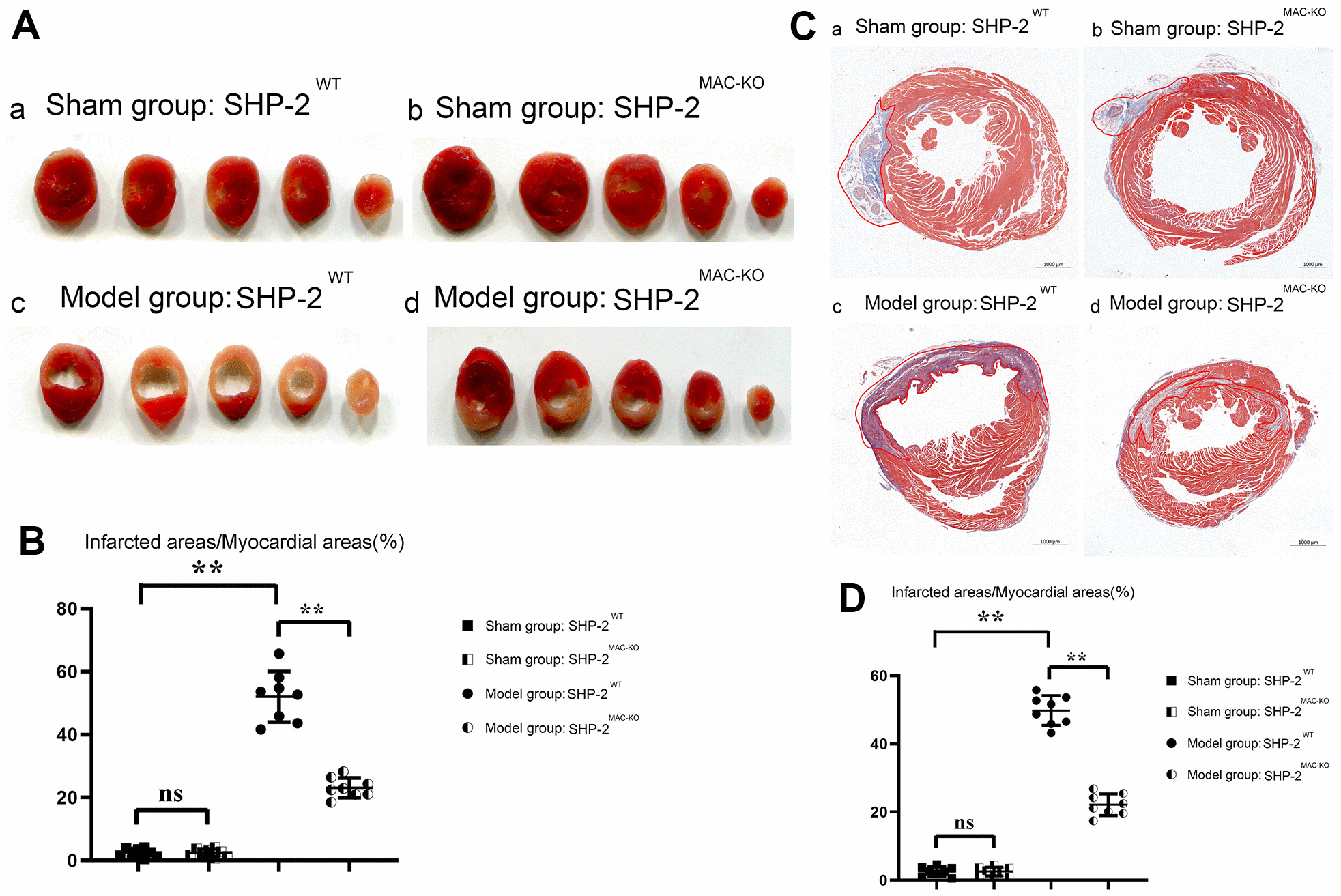

Figure 2.SHP2^MAC-KO reduces myocardial infarct size in mice. (A) TTC results; (B) percentage of infarct size in each group; (C) Plot of Masson Staining result; (D) Myocardial infarction area statistics. **P<0.01, ns P>0.05.
