Research Paper Volume 15, Issue 19 pp 10501—10523
A SARS-CoV-2 related signature that explores the tumor microenvironment and predicts immunotherapy response in esophageal squamous cell cancer

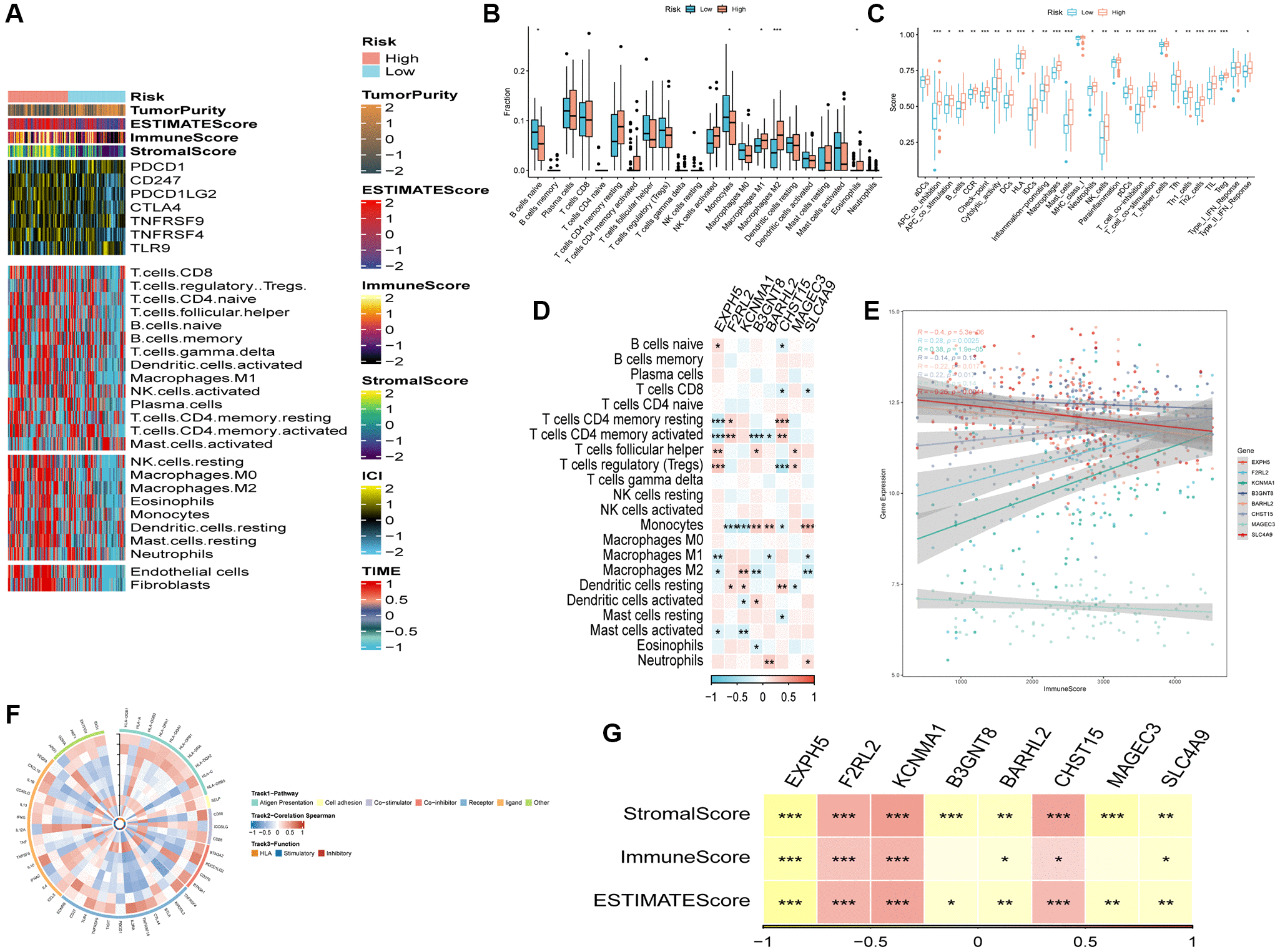

Figure 7. The immune infiltrations analysis. (A) Heatmap of results on immune cells of tumor microenvironment (TME) in ESCC with multialgorithm, including existing data from platform TIMER and MCP-counter. TME-related scores were exhibited in the top bar. (B) Comparison of proportions of 22 immune-related cells between high-and-low-risk groups. (C) Comparison of proportions of immune-related functions between high-and-low-risk groups. (D) Correlations between eight hub genes and 22 immune-related cells. (E) Correlations between the eight genes and immune score. (F) The correlation analysis between eight hub genes and 75 immune-associated genes. (G) Correlations between the eight genes and immune score, stromal score, estimate score. (*P < 0.05; **P < 0.01; ***P < 0.001).
