Figure 6 — Hub gene identification and molecular subtype construction for Helicobacter pylori in gastric cancer via machine learning methods and NMF algorithm

Research Paper|Volume 15, Issue 21|pp. 11782–11810

Hub gene identification and molecular subtype construction for Helicobacter pylori in gastric cancer via machine learning methods and NMF algorithm

Back to articleFigure 6(6 of 10)

100%

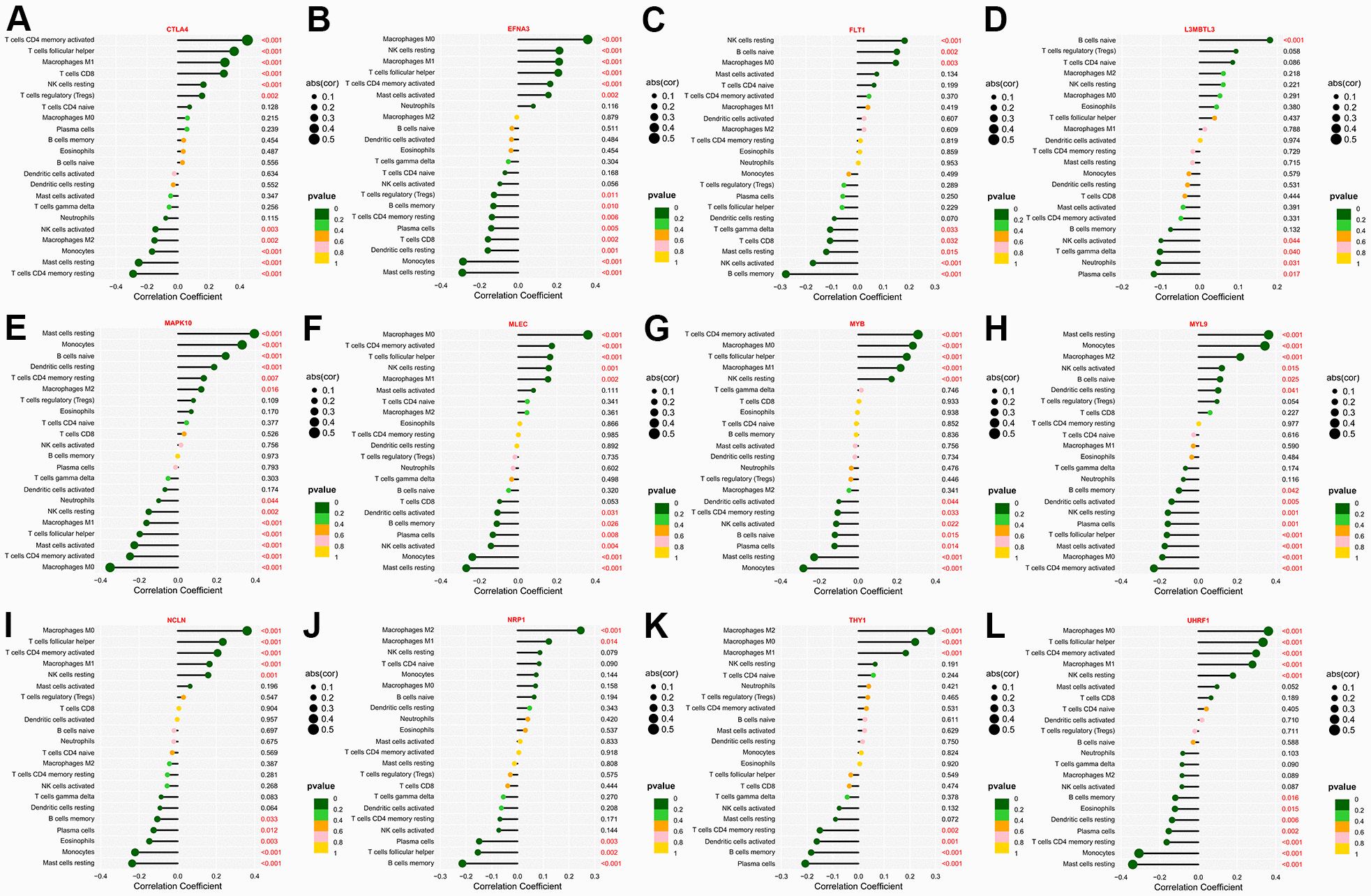

Figure 6.The immune-infiltrating landscape of GC based on the twelve hub genes. (A–L) Lollipop plots revealing the association between the twelve hub genes and the infiltration level of various immune cells.
