Research Paper Volume 15, Issue 17 pp 9128—9143

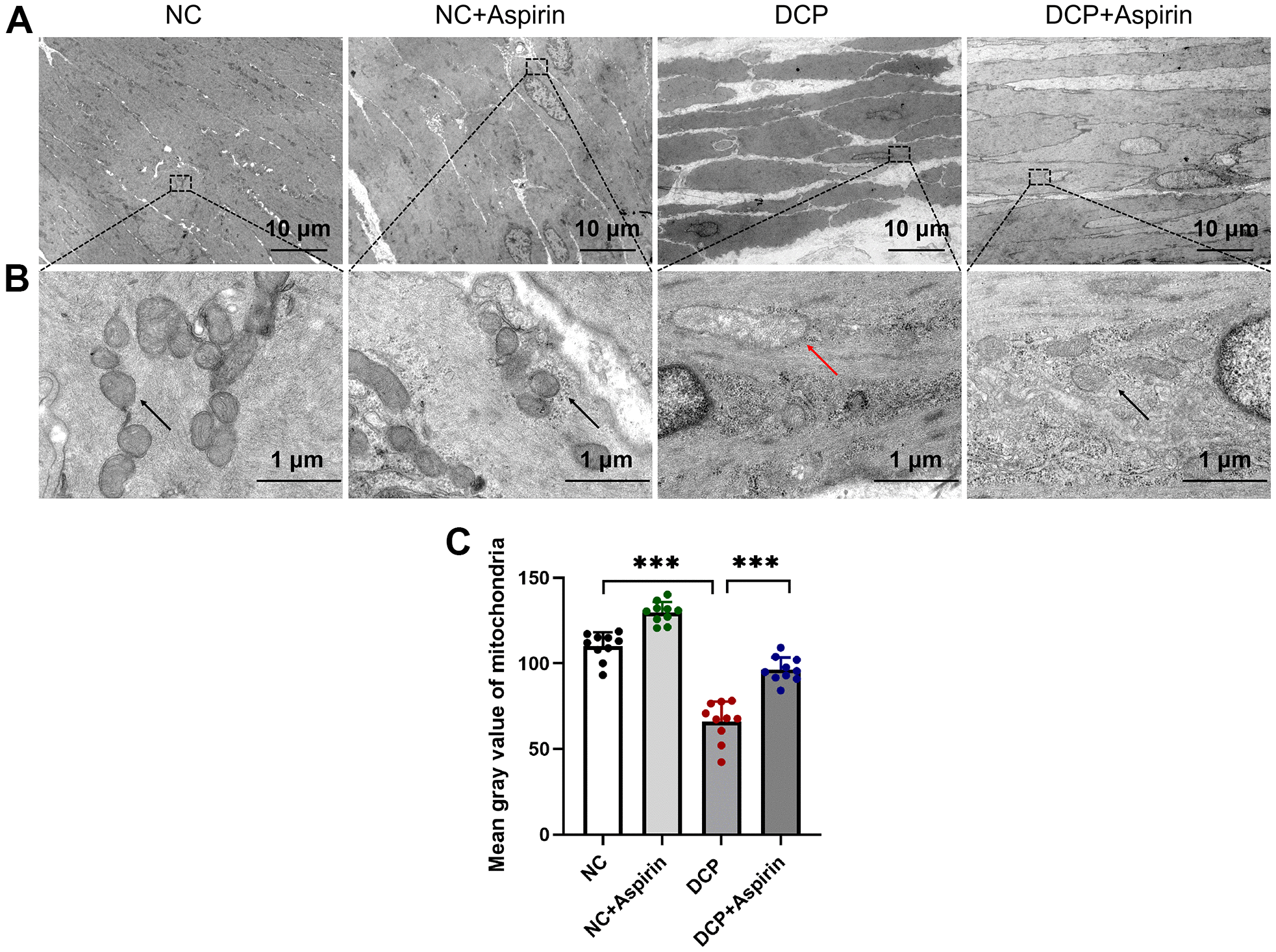

Figure 3. Transmission electron microscopy (TEM) of bladder DSM tissue after 10 weeks of aspirin administration. Organelles such as nucleus, mitochondria, and rough endoplasmic reticulum are seen. (A) A representative image from the bladder DSM at a magnification of ×1,000. (B) A representative image from the bladder DSM at a magnification of ×15,000. The red arrowheads indicate the swollen mitochondria. (C) Statistical analysis of the mitochondrial matrix optical density. Data were presented as mean ± SD. N=6. (***, P < 0.001; NC vs DCP; DCP vs DCP+Aspirin).
