Research Paper Volume 15, Issue 17 pp 8851—8872
Integrative analysis identifies AKAP8L as an immunological and prognostic biomarker of pan-cancer

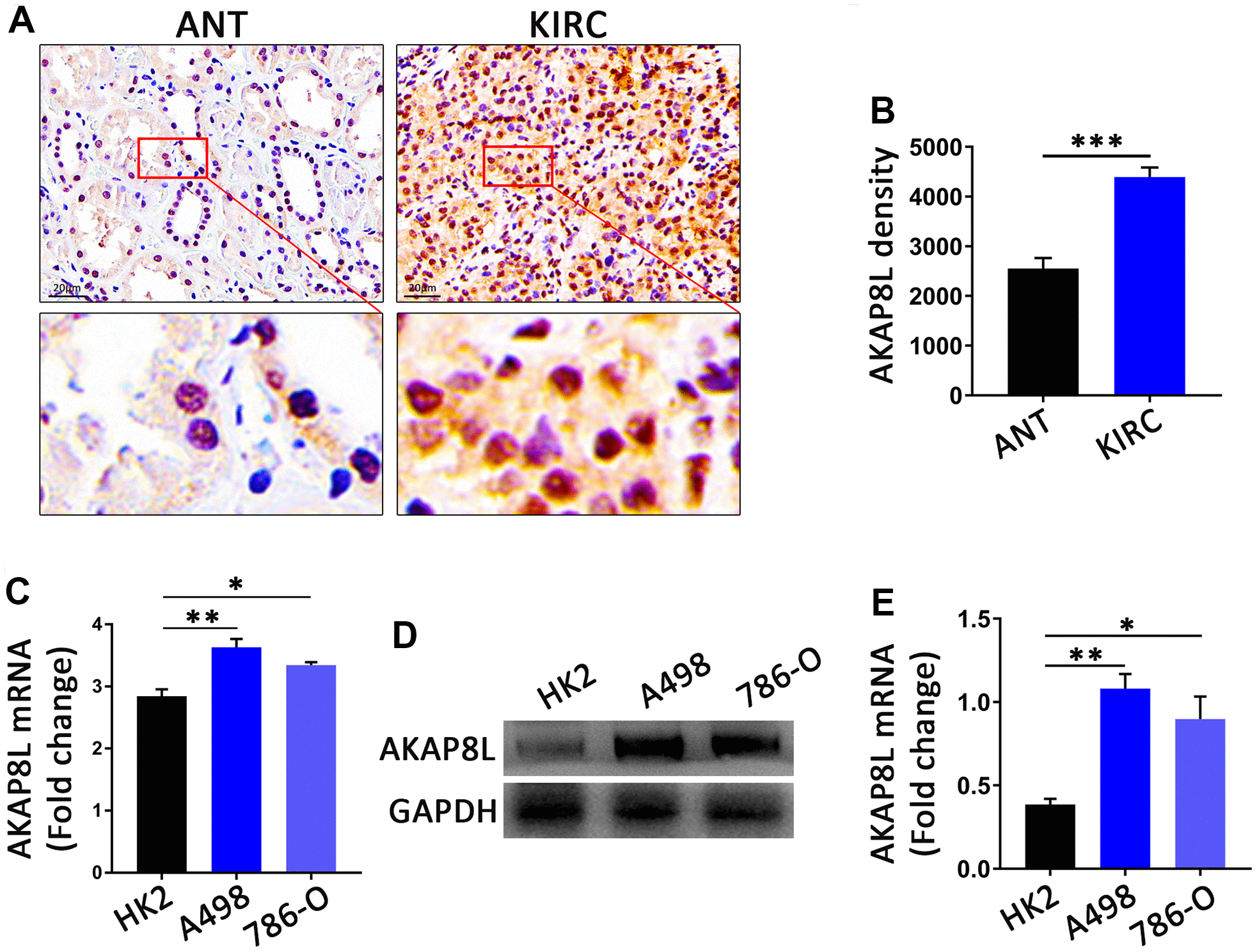

Figure 11. The AKAP8L expression in KIRC. (A) Representative images showing immunohistochemica (IHC) staining results of AKAP8L in KIRC tissues (KIRC) and adjacent normal tissues (ANT) (scale bar, 20 μm). (B) Semiquantitative analysis of IHC staining (n=10). (C) The mRNA expression levels of AKAP8L in different cell types (n≥3). (D) Protein expression levels of AKAP8L and GAPDH in different cell types. (E) Semi-quantification of AKAP8L protein expression level determined by densitometry normalized to GAPDH. *P<0.05, **P<0.01, ***P<0.001. KIRC, Kidney renal clear cell carcinoma.
