Figure 1 — Bioinformatics approach and experimental validation reveal the hepatoprotective effect of pachyman against acetaminophen-associated liver injury

Research Paper|Volume 15, Issue 17|pp. 8800–8811

Bioinformatics approach and experimental validation reveal the hepatoprotective effect of pachyman against acetaminophen-associated liver injury

Back to articleFigure 1(1 of 7)

100%

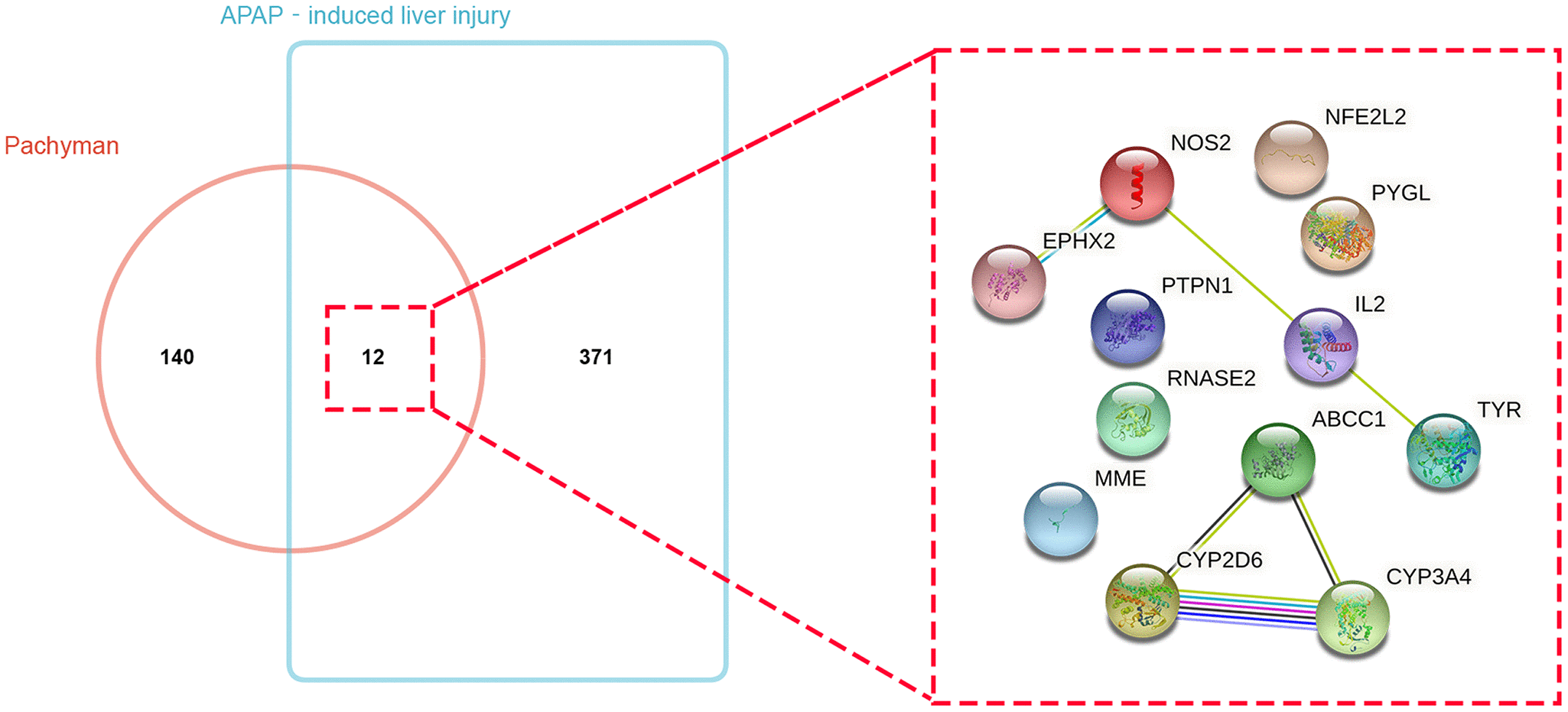

Figure 1.Bioinformatics and Venn mapping analyses showed 152 and 383 respective genes in pachyman and APAP-induced liver injury, and 12 intersection genes were identified and gene interaction network diagram of 12 potential targets was visualized.
