Figure 6 — Integrative analysis links autophagy to intrauterine adhesion and establishes autophagy-related circRNA-miRNA-mRNA regulatory network

Research Paper|Volume 15, Issue 16|pp. 8275–8297

Integrative analysis links autophagy to intrauterine adhesion and establishes autophagy-related circRNA-miRNA-mRNA regulatory network

Back to articleFigure 6(6 of 10)

100%

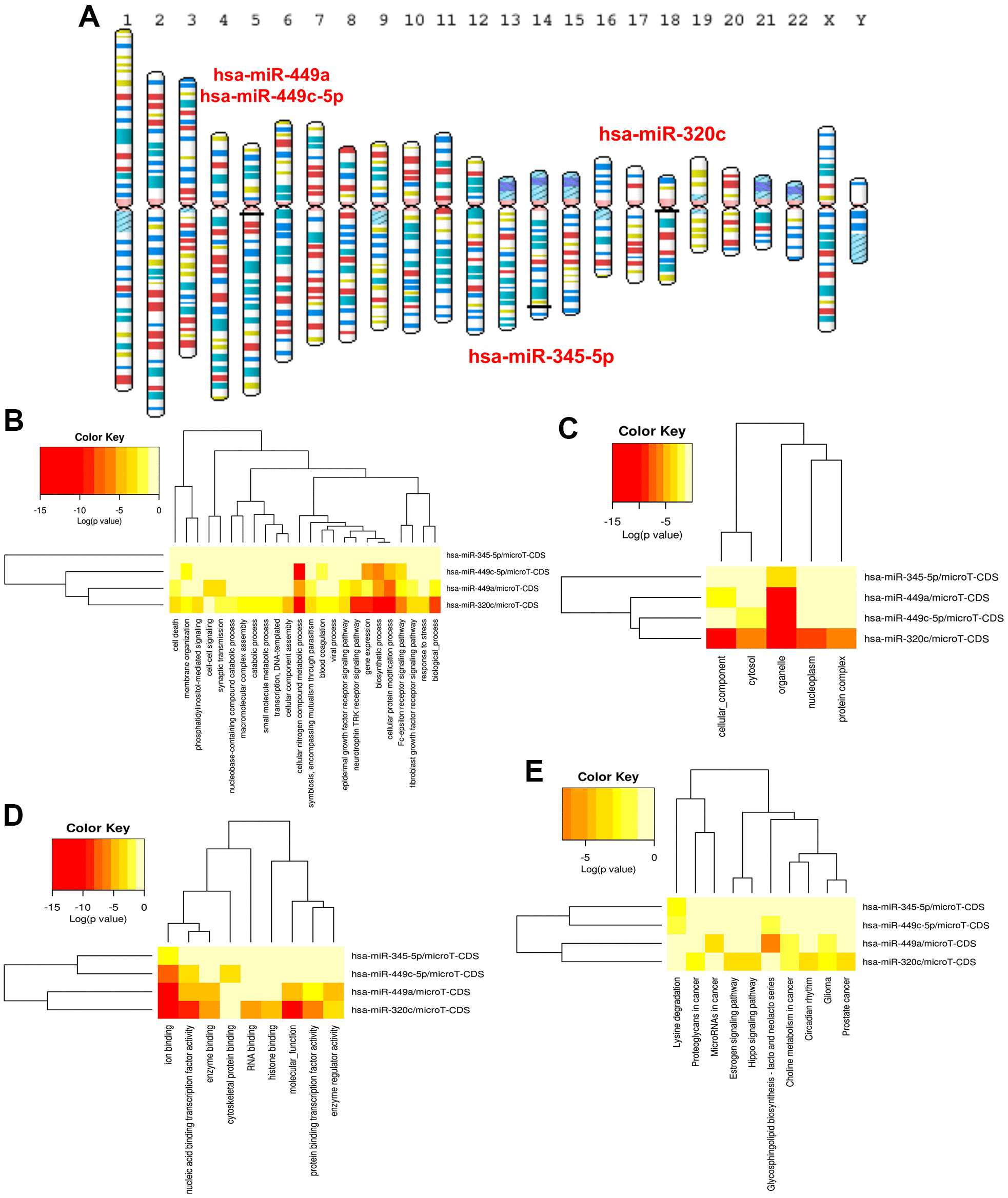

Figure 6.(A) Location of ARDEMs on chromosomes. GO and KEGG analysis of hsa-miR-320c, hsa-miR-449a, hsa-miR-449c-5p and hsa-miR-345-5p. (B) BP-terms, (C) CC-terms, (D) MF-terms and (E) KEGG pathways.
