Research Paper Volume 15, Issue 14 pp 7308—7323
Subcellular localization of nucleolar protein 14 and its proliferative function mediated by miR-17-5p and E2F4 in pancreatic cancer

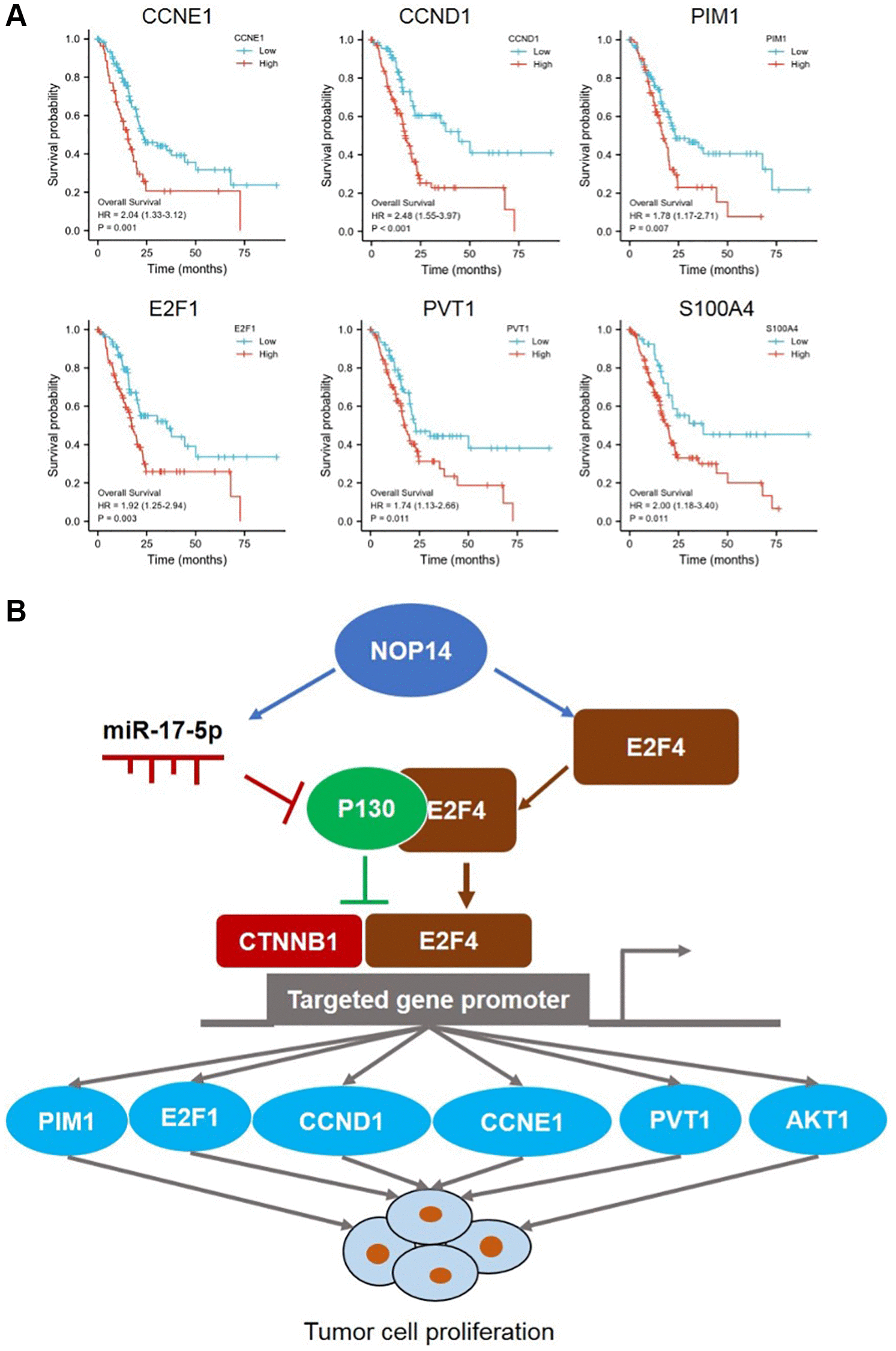

Figure 5. Prognostic value of NOP14-miR 17-5p and -E2F4 pathway and their regulatory diagram. (A) Kaplan–Meier survival analysis of NOP14 downstream targeted genes according to their expression in the TCGA pancreatic cancer dataset. The P value was obtained by Cox regression in R (version 3.6.3). (B) Schematic diagram showing the regulation of pancreatic cancer cell proliferation by the NOP14-miR 17-5p and -E2F4 pathway.
