Figure 7 — Swertia cincta Burkill alleviates LPS/D-GalN-induced acute liver failure by modulating apoptosis and oxidative stress signaling pathways

Research Paper|Volume 15, Issue 12|pp. 5887–5916

Swertia cincta Burkill alleviates LPS/D-GalN-induced acute liver failure by modulating apoptosis and oxidative stress signaling pathways

Back to articleFigure 7(7 of 12)

100%

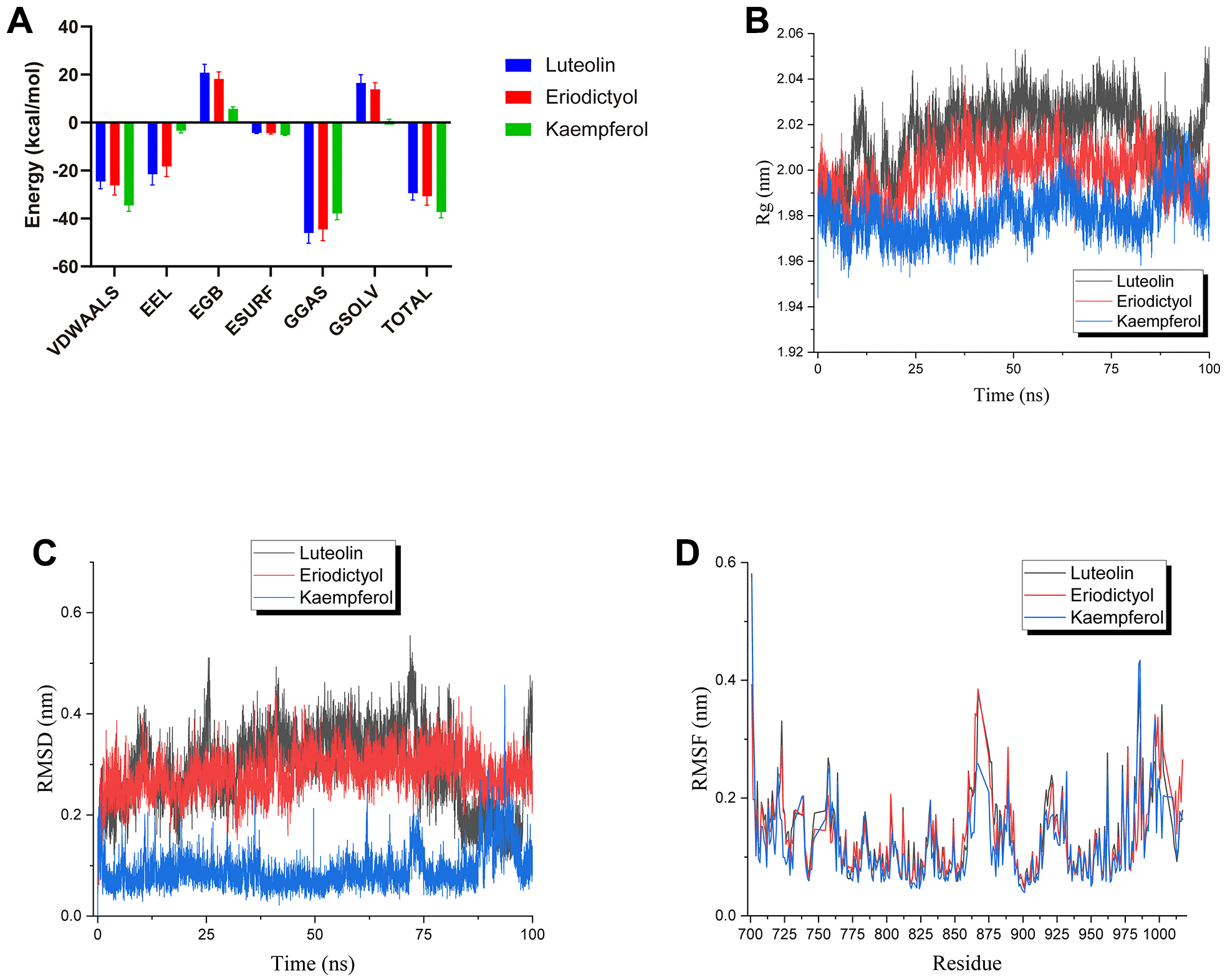

Figure 7.Molecular dynamic simulations. (A) The MM-PBSA module determined the total binding energy and the energy components. (B) The radius of gyration obtained in MD analysis. (C) Complex RMSD. (D) Complex RMSF.
