Research Paper Volume 15, Issue 13 pp 6179—6211
ZNF765 is a prognostic biomarker of hepatocellular carcinoma associated with cell cycle, immune infiltration, m6A modification, and drug susceptibility

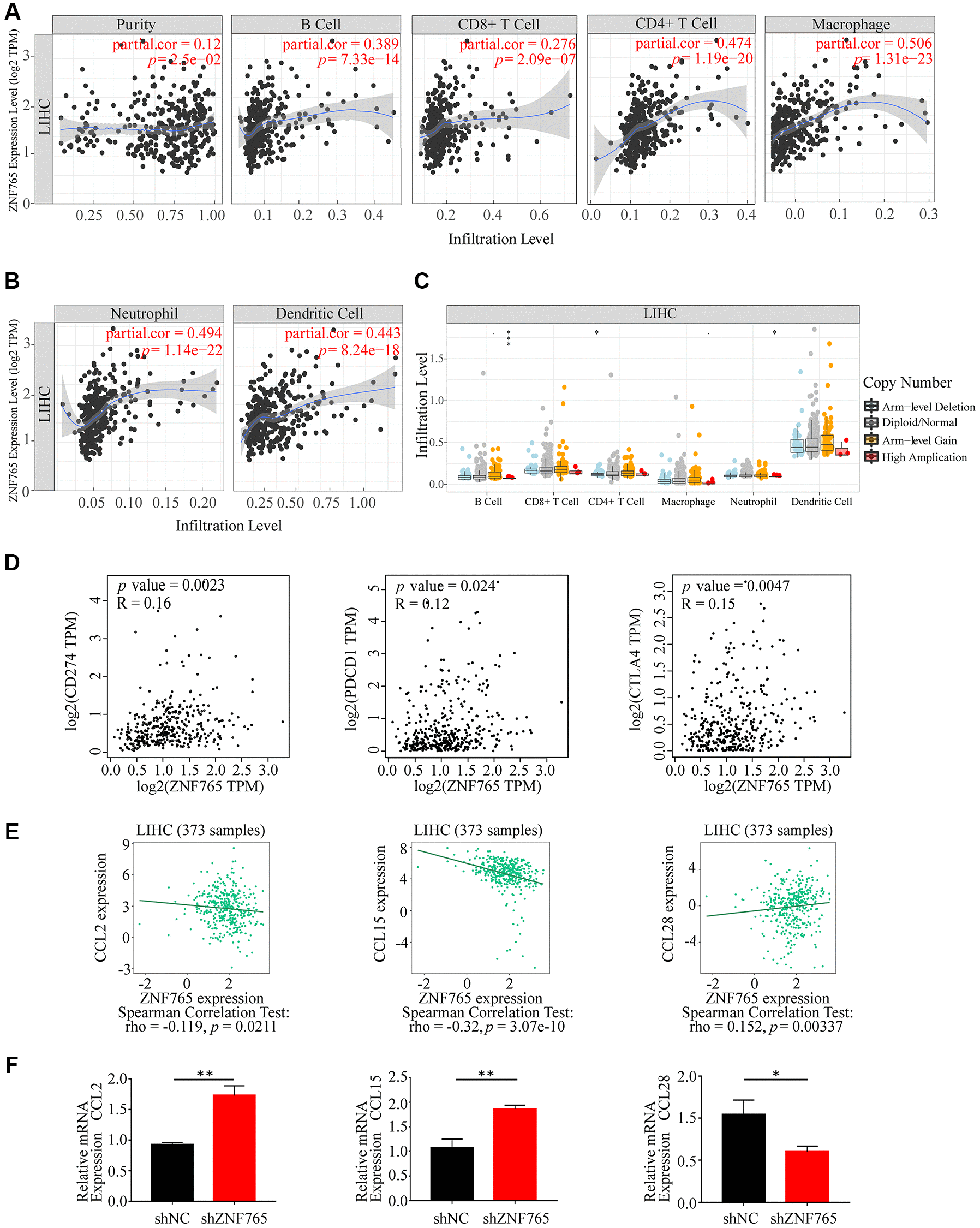

Figure 7. Correlations of ZNF765 expression with immune infiltration level and LIHC-related chemokines. (A, B) ZNF765 expression is negatively related to tumor purity, infiltrating levels of B cells, CD8+ T cells, CD4+ T cells, macrophages, neutrophils, and dendritic cells in HCC. (C) ZNF765 CNV affects the infiltrating levels of B cells, CD4+ T cells, and neutrophil cells in HCC (*p < 0.05, ***p < 0.001). (D) The mRNA correlation between CD274/PDCD1/CTLA4 and ZNF765 in the LIHC data of TCGA. (E) The association between ZNF765 and LIHC-related chemokines. (F) CCL2/CCL15/CCL28 relative mRNA expression in shNC and shZNF765.
