Figure 6 — Network medicine framework identified drug-repurposing opportunities of pharmaco-active compounds of Angelica acutiloba (Siebold & Zucc.) Kitag. for skin aging

Research Paper|Volume 15, Issue 11|pp. 5144–5163

Network medicine framework identified drug-repurposing opportunities of pharmaco-active compounds of Angelica acutiloba (Siebold & Zucc.) Kitag. for skin aging

Back to articleFigure 6(6 of 8)

100%

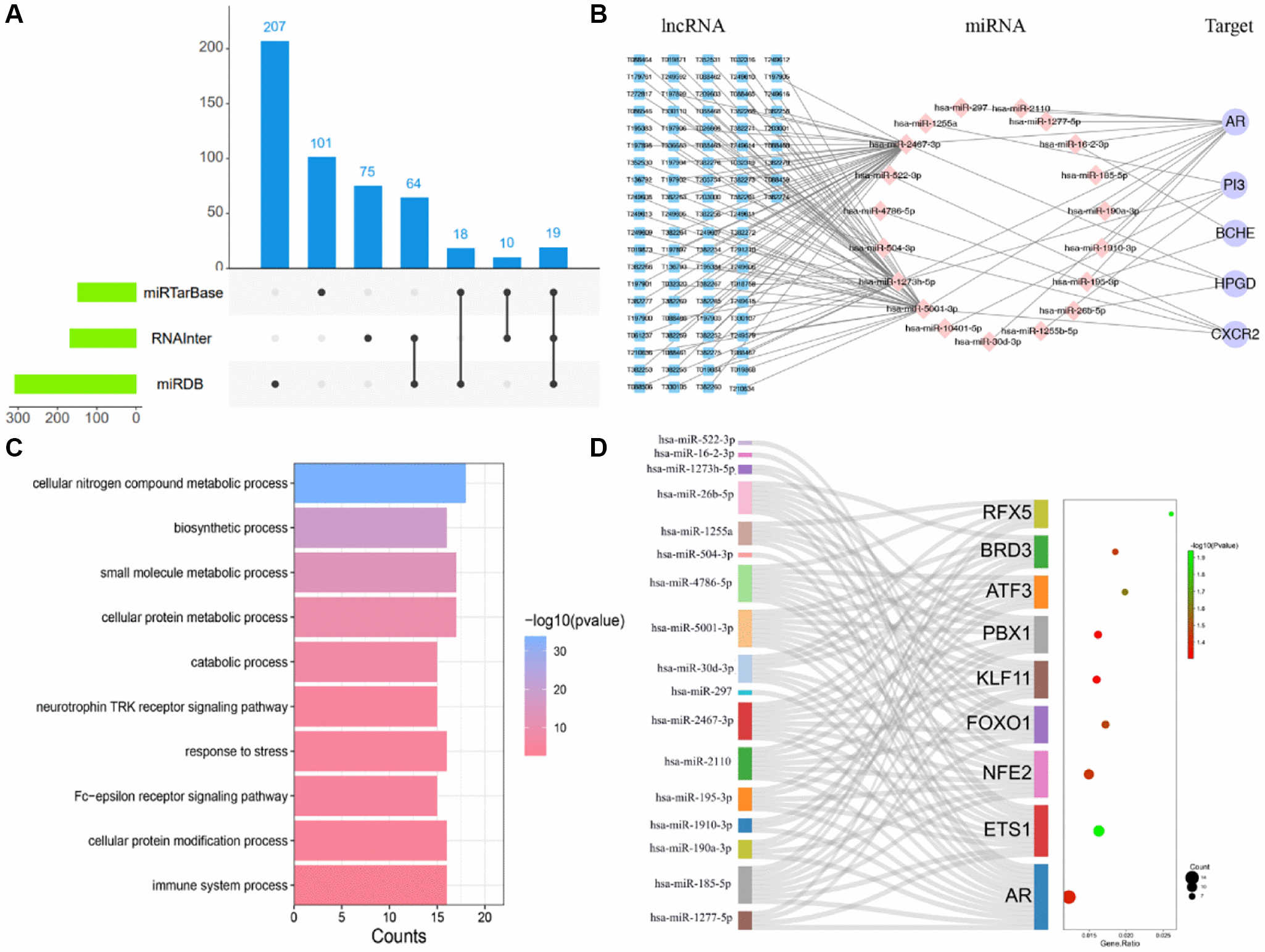

Figure 6.LncRNA-miRNA-target gene network of AAK hub-targets. (A) The 19 regulated hub-targets from 3 mi RNA databases; (B) The network of LncRNA-miRNA-target gene; (C) Biological processes of 19 regulated miRNA; (D) TF-miRNAs regulatory network).
