Figure 8 — Identification and validation of metabolism-related genes signature and immune infiltration landscape of rheumatoid arthritis based on machine learning

Research Paper|Volume 15, Issue 9|pp. 3807–3825

Identification and validation of metabolism-related genes signature and immune infiltration landscape of rheumatoid arthritis based on machine learning

Back to articleFigure 8(8 of 12)

100%

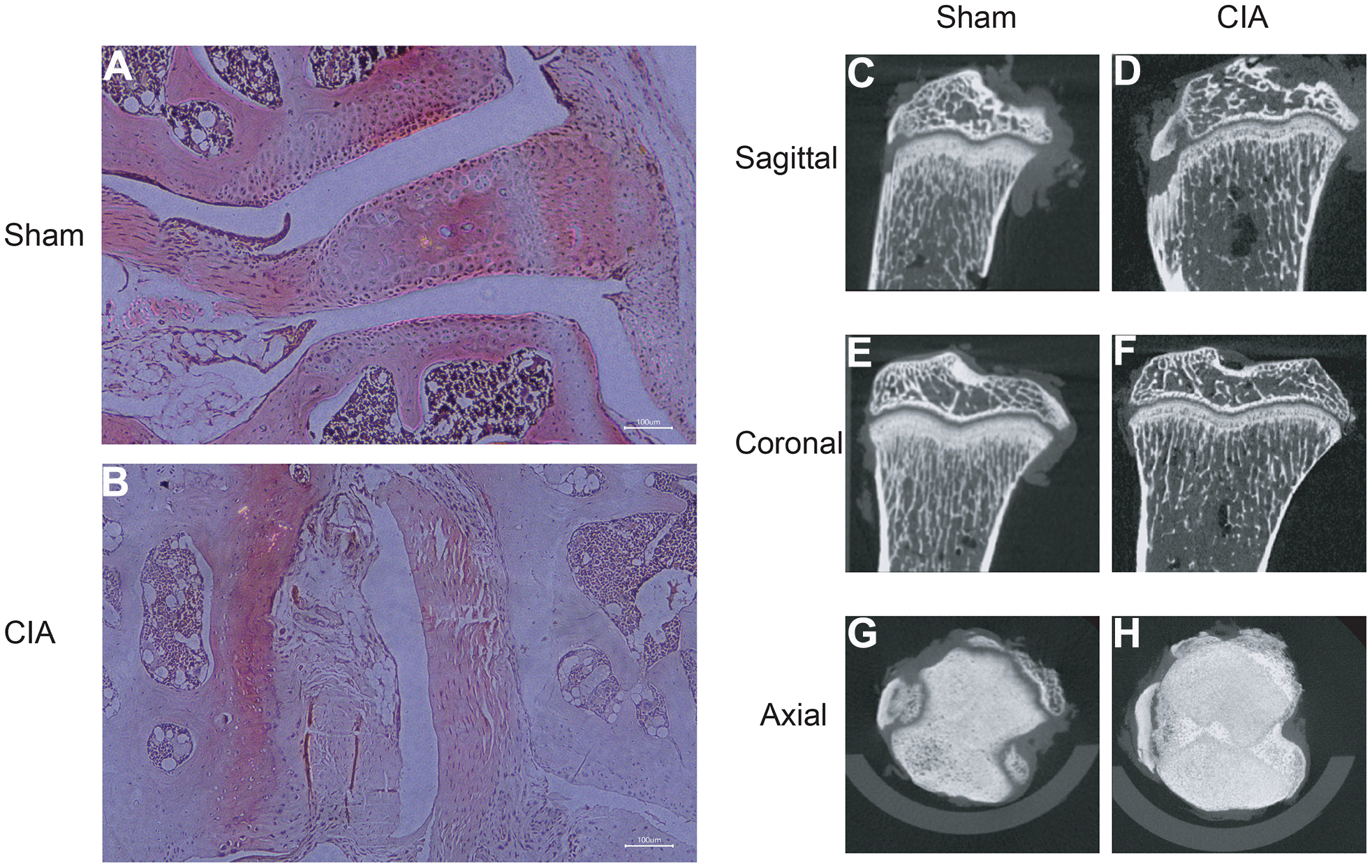

Figure 8.HE staining of mouse joints and micro-CT imaging of mouse joints. (A) HE staining of joints in the Sham group mice. (B) HE staining of joints in the CIA group mice. (C–H) Micro-CT imaging of joints in the Sham and CIA group mice.
