Research Paper Volume 15, Issue 8 pp 3120—3140
An artificial neural network model to diagnose non-obstructive azoospermia based on RNA-binding protein-related genes

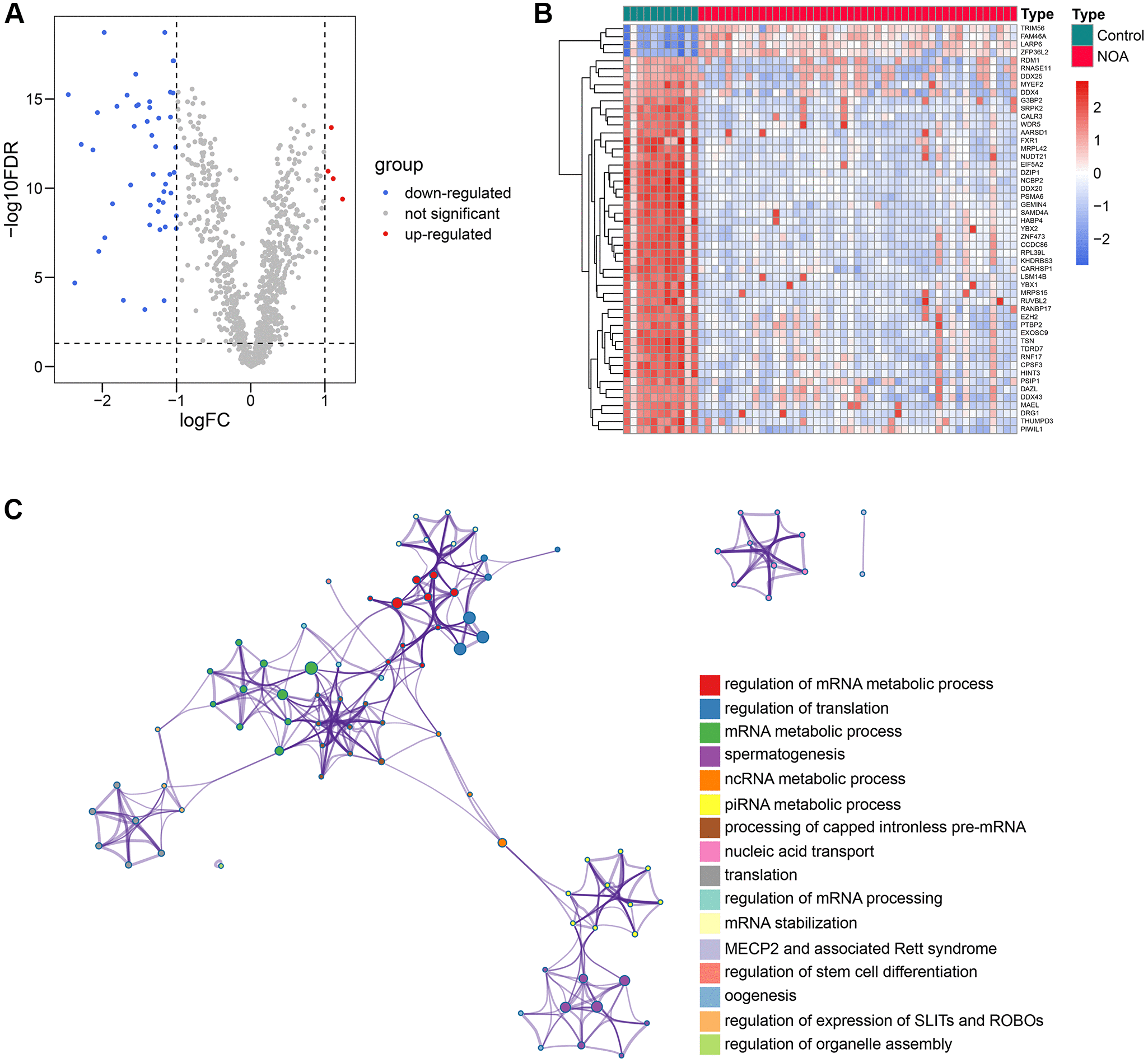

Figure 2. 51 differentially-expressed RBPs and their functional enrichment. (A, B) The volcano plot (A) and the heat map (B) indicated that 51 of 1542 RBPs were differentially expressed between the control and NOA testicular samples. (C) The functional annotation of the 51 RBPs. Abbreviations: RBP: RNA-binding protein; NOA: non-obstructive azoospermia.
