Research Paper Volume 15, Issue 5 pp 1412—1444
A novel risk score model based on pyroptosis-related genes for predicting survival and immunogenic landscape in hepatocellular carcinoma

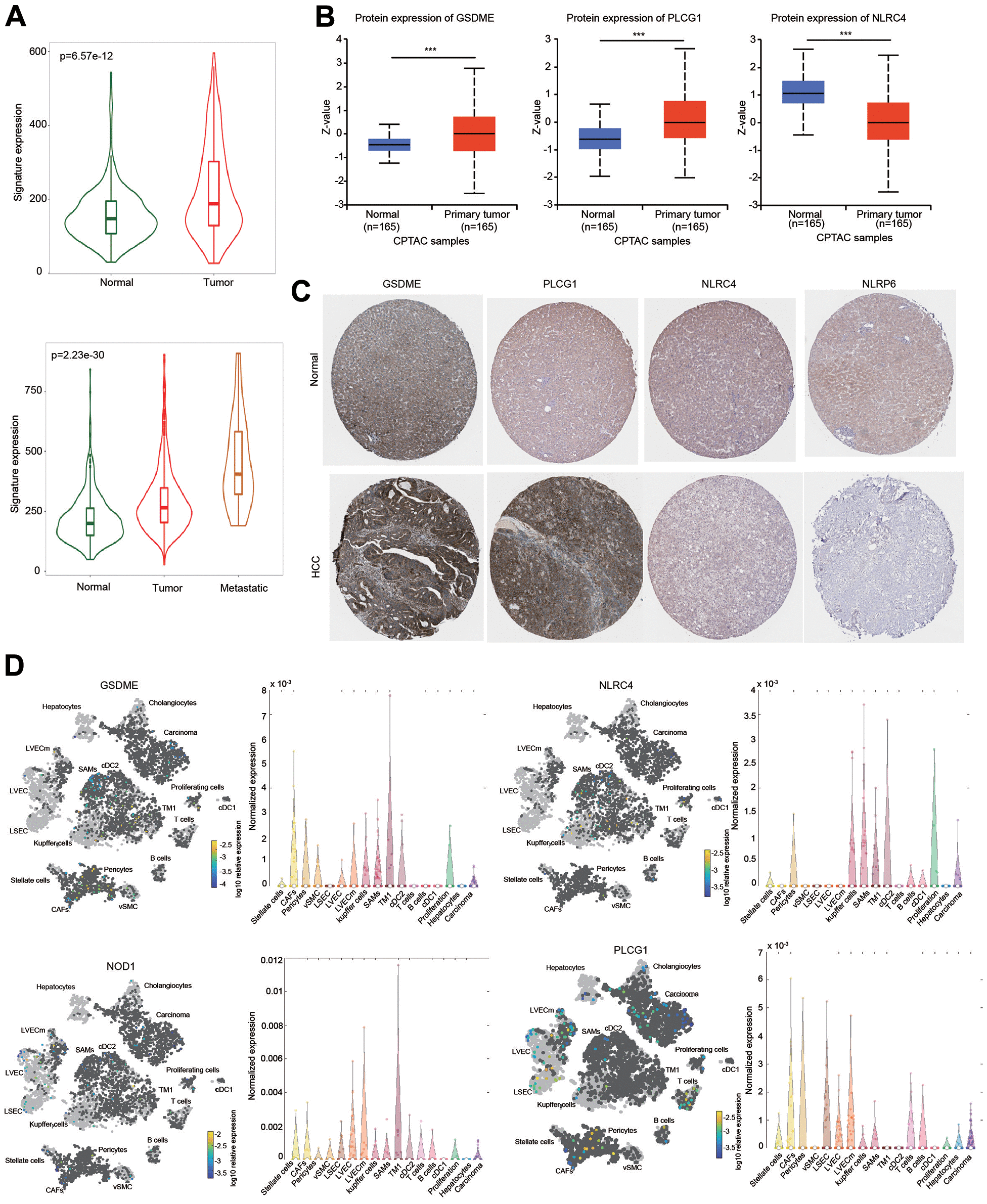

Figure 10. Expression of the prognostic signature and PRGs in HCC samples and normal liver samples. (A) The expression of the prognostic signature in HCC was examined using the TMNplot database. (B) The protein levels of GSDME, NLRC4 and PLCG1 were examined using the CPTAC database. (C) IHC analysis of the protein levels of GSDME, PLCG1, NLRC4 and NLRP6 using the HPA database. (D) Differential expression and distribution of GSDME, PLCG1, NLRC4 and NOD1 in HCC based on single-cell RNA-sequence analysis using the Human Liver Browser database. ***p < 0.001.
