Research Paper Volume 14, Issue 20 pp 8243—8257
Network analysis for the identification of hub genes and related molecules as potential biomarkers associated with the differentiation of bone marrow-derived stem cells into hepatocytes

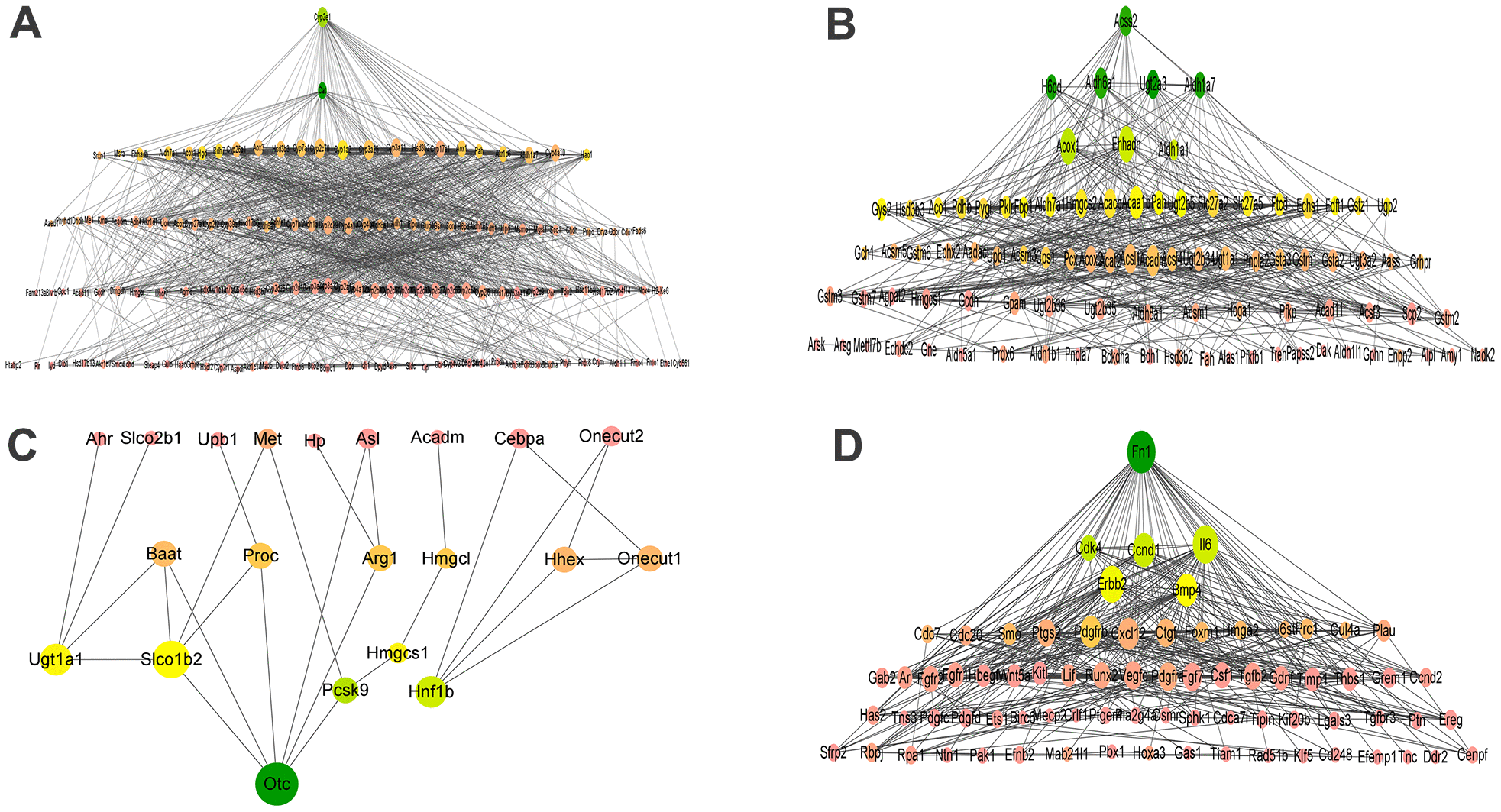

Figure 5. PPI networks of oxidation-reduction process (GO:0055114, A), metabolic process (GO:0008152, B), liver development (GO:0001889, C), and positive regulation of cell proliferation (GO:0042127, D) biological process. (A) PPI networks of oxidation-reduction process. (B) PPI networks of metabolic process. (C) PPI networks of liver development. (D) PPI networks of positive regulation of cell proliferation. The node size was determined according to the degree of connectivity. The color gradient of nodes reflects the change in BC, wherein the change of green to yellow coincides with its change from high to low.
