Figure 4 — The therapeutic effect of Fufang Zhenshu Tiaozhi (FTZ) on osteoclastogenesis and ovariectomized-induced bone loss: evidence from network pharmacology, molecular docking and experimental validation

Research Paper|Volume 14, Issue 14|pp. 5727–5748

The therapeutic effect of Fufang Zhenshu Tiaozhi (FTZ) on osteoclastogenesis and ovariectomized-induced bone loss: evidence from network pharmacology, molecular docking and experimental validation

Back to articleFigure 4(4 of 8)

100%

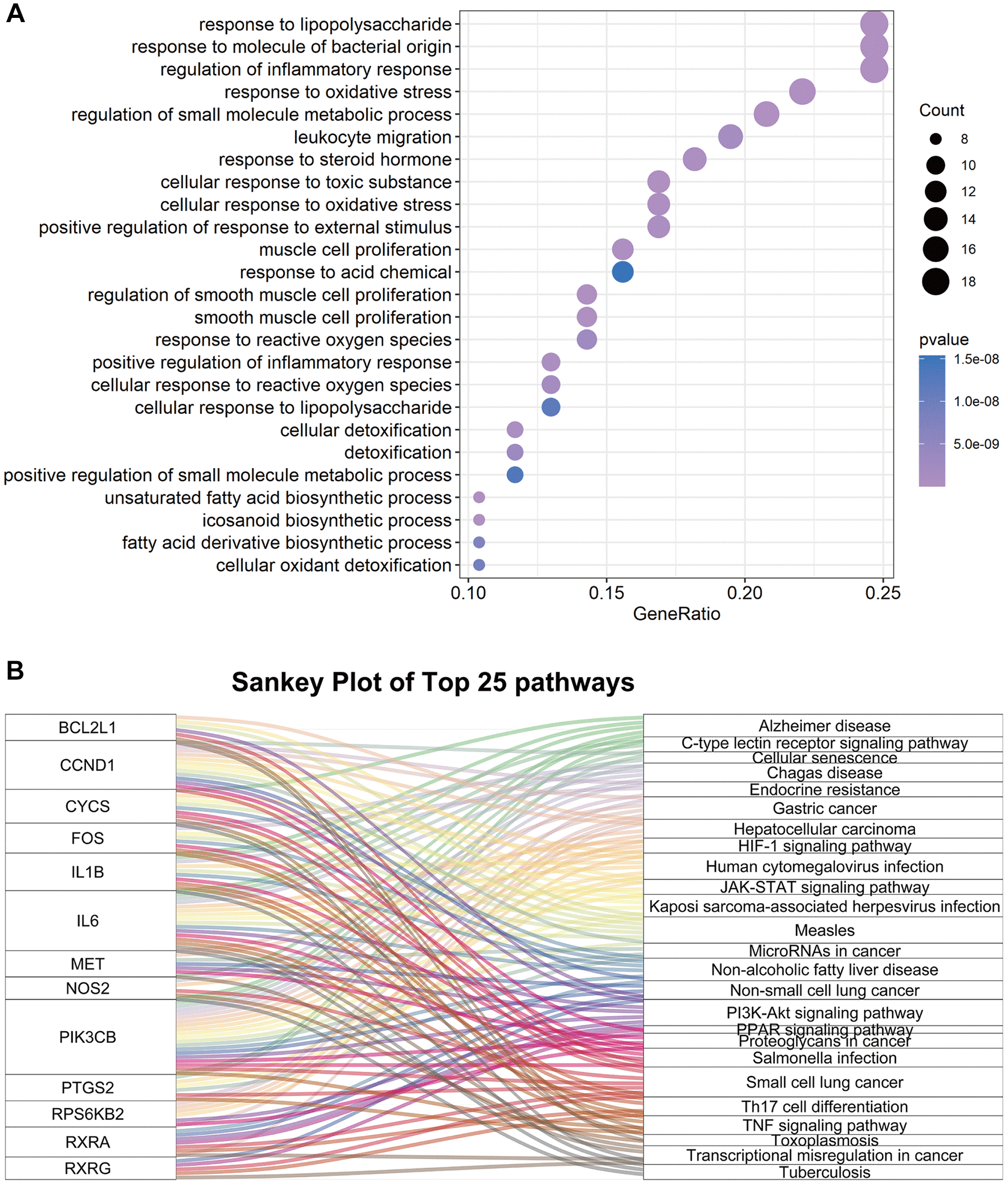

Figure 4.The enrichment results of 77 common genes between FTZ pharmacological target genes and osteoclast-related genes. (A) Top 25 terms of the biological process enrichment. (B) Sankey diagram for the top 25 KEGG enrichment terms, displayed the relationship between enriched genes and pathway terms.
