Research Paper Volume 14, Issue 11 pp 4819—4826

NEAT1 variant 1 weakens the genome-wide effect of miR-3122 on blocking H3K79me3 in bladder cancer

class="figure-viewer-img"

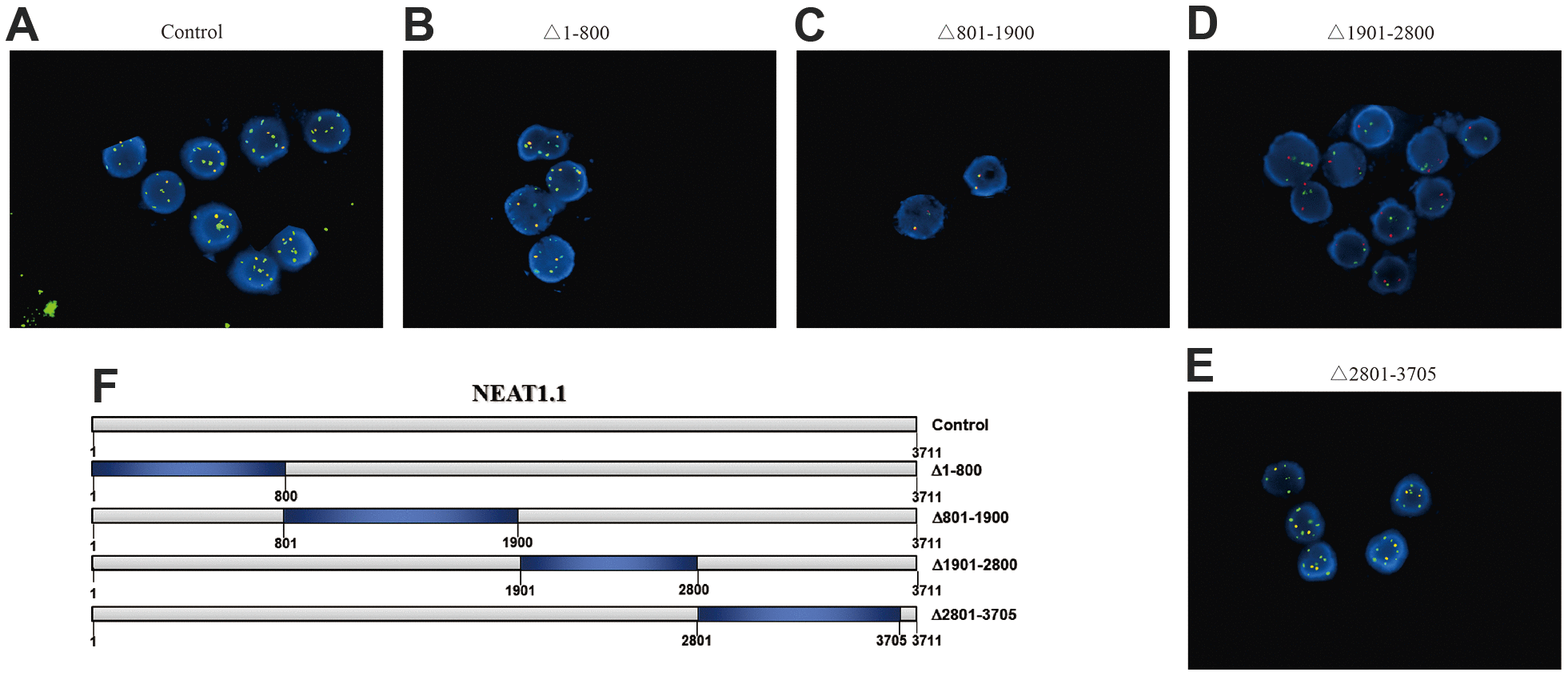

Figure 2. The interaction between NEAT1.1 and miR-3122. FISH assay shows the contacts with miR-3122 and wild type NEAT1.1 (A), NEAT1.1 with 1-800 truncation (B), 801-1900 truncation (C), 1901-2800 truncation (D), 2801-3705 truncation (E) in T24 cells with 200 x magnification. Red signals indicate NEAT1.1, and green signals indicate miR-3122. Yellow signals mean the overlapping of these two probes. (F) The schematic representation of NEAT1.1 with truncation of each fragment.
