Figure 7 — Mechanisms of action of triptolide against colorectal cancer: insights from proteomic and phosphoproteomic analyses

Research Paper|Volume 14, Issue 7|pp. 3084–3104

Mechanisms of action of triptolide against colorectal cancer: insights from proteomic and phosphoproteomic analyses

100%

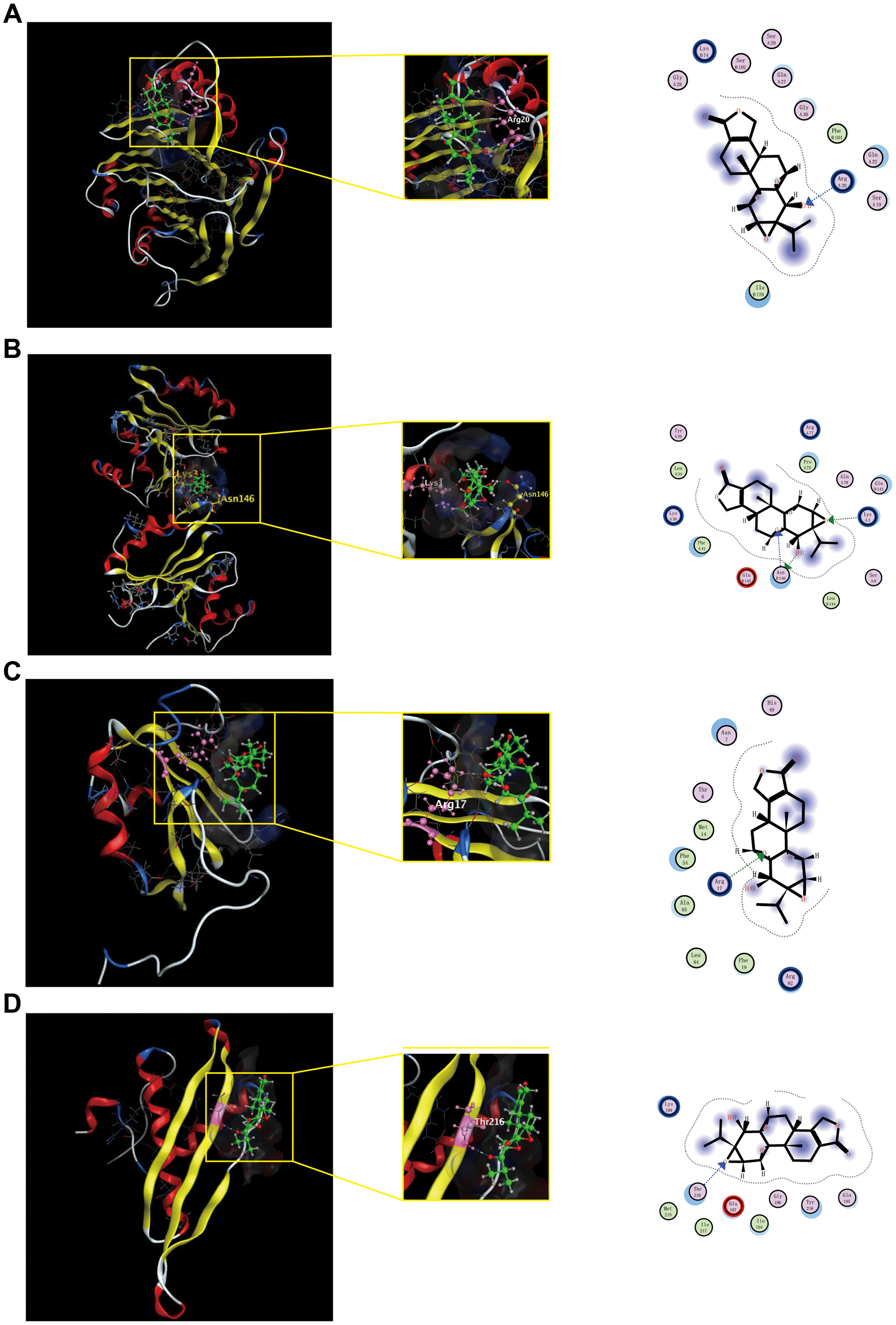

Figure 7.Shows the binding interactions of triptolide with the CRC-related hub genes protein. Triptolide binds to AMD1(A), IMP3(B), HNRNP(C) and DHX9(D). Ball and stick represent triptolide; cartoon represents a hub target.
