Figure 3 — Network pharmacology reveals the potential mechanism of Baiying Qinghou decoction in treating laryngeal squamous cell carcinoma

Research Paper|Volume 13, Issue 24|pp. 26003–26021

Network pharmacology reveals the potential mechanism of Baiying Qinghou decoction in treating laryngeal squamous cell carcinoma

Back to articleFigure 3(3 of 6)

100%

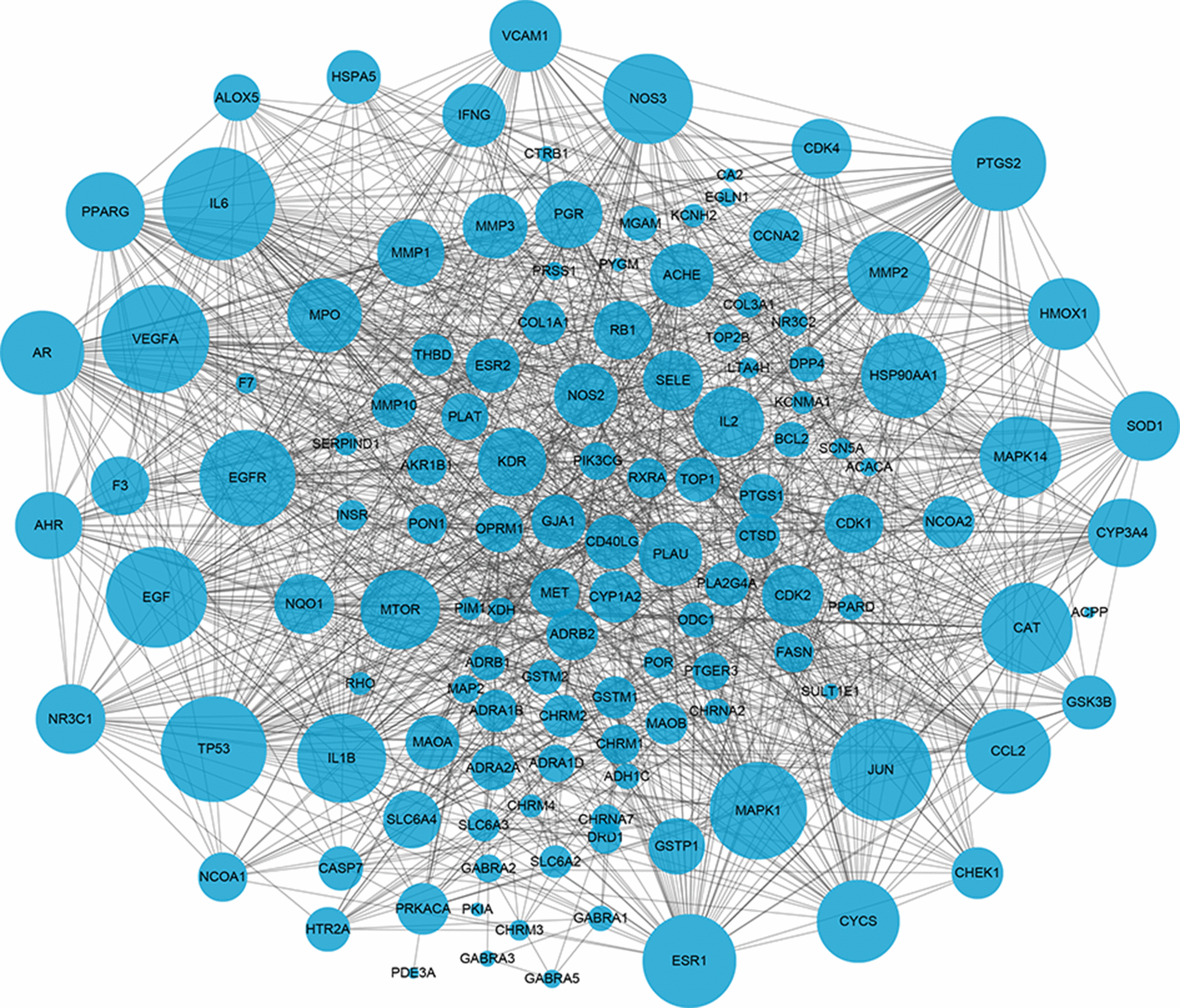

Figure 3.The protein-protein interaction (PPI) network of key target genes of Baiying Qinghou decoction. Dots represent target proteins/genes and the lines represents interactions among proteins/targets. The larger dot size shows the higher degree.
