Figure 6

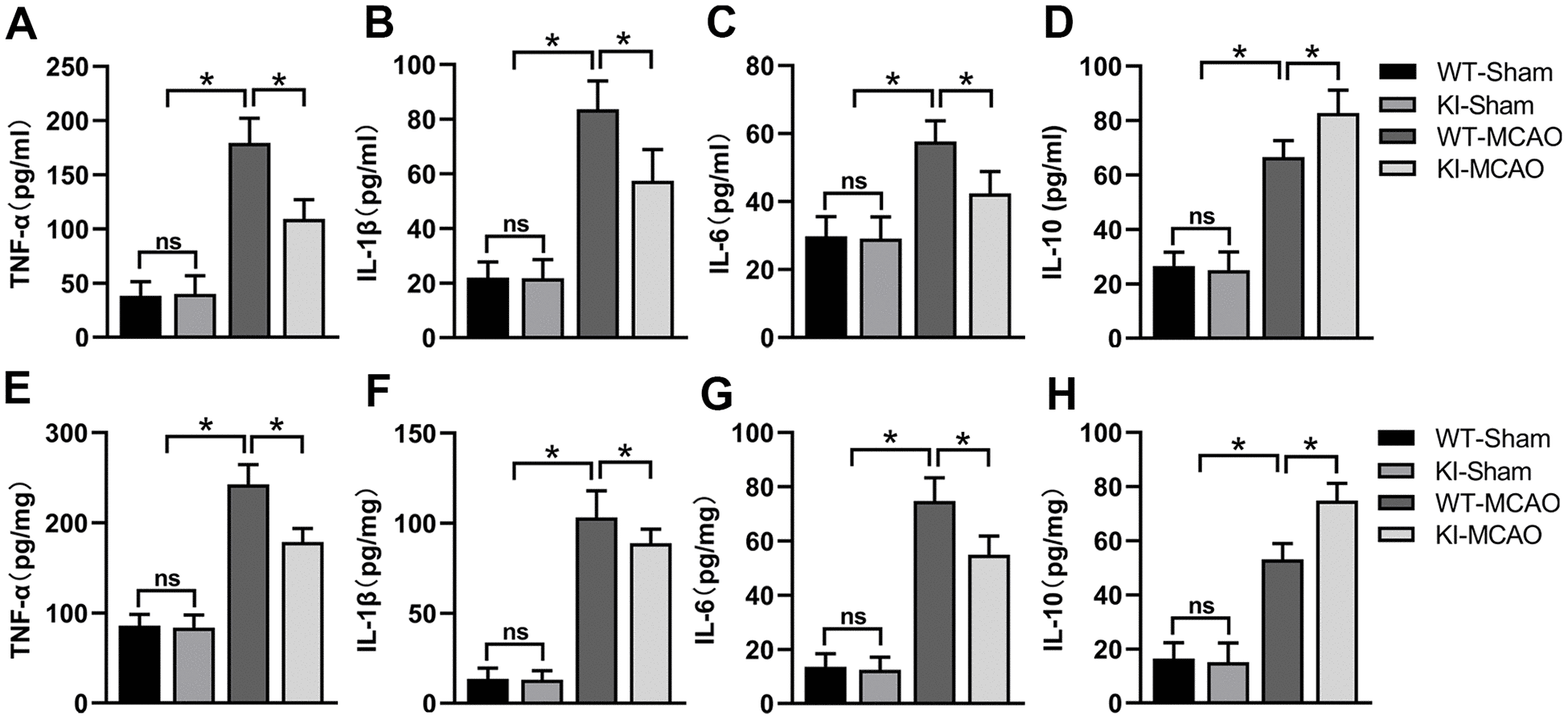

Figure 6.CHIP overexpression alleviated the inflammatory response after MCAO. (AD) Proinflammatory mediators (TNF-α, IL-1β, IL-6) and anti-inflammatory mediator (IL-10) levels in the serum after MCAO. (EH) Pro-inflammatory mediators (TNF-α, IL-1β, IL-6) and anti-inflammatory mediator (IL-10) in peri-infarct tissues after MCAO. Data are presented as the mean ± SEM; n=6/group; ns, no significant difference; *P < 0.05.
Figure 6 — CHIP ameliorates cerebral ischemia-reperfusion injury by attenuating necroptosis and inflammation | Aging
