Figure 1 — Immunological and clinical immunotherapy implications of NLRP3 mutations in melanoma

Research Paper|Volume 13, Issue 21|pp. 24271–24289

Immunological and clinical immunotherapy implications of NLRP3 mutations in melanoma

100%

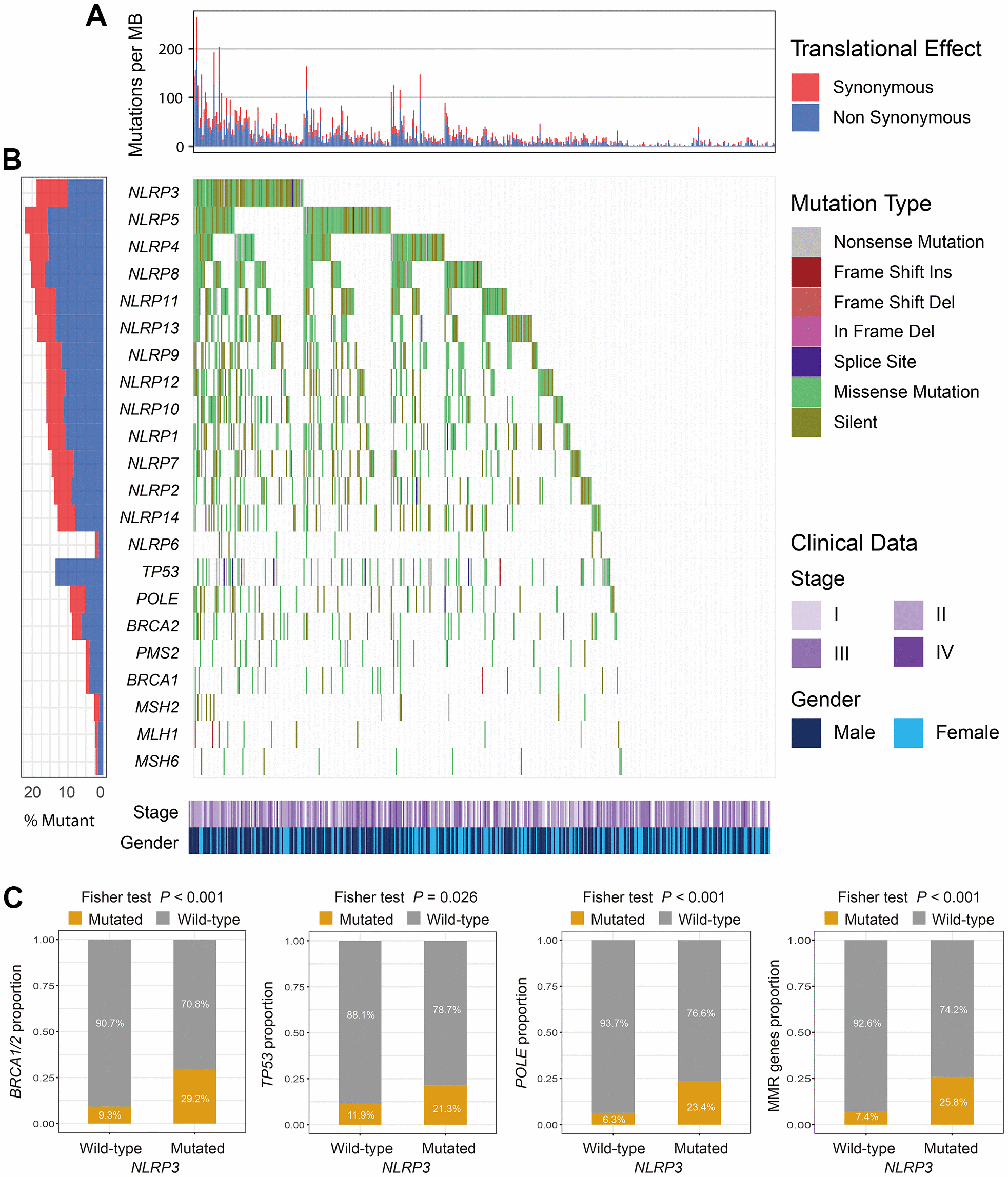

Figure 1.The mutational patterns of NLR family members and genome maintenance genes. (A) TMB stratified by synonymous and non-synonymous mutations for each patient. (B) Waterfall plot for NLR family members and genome maintenance genes. (C) Association of NLRP3 mutations with BRCA1/2, TP53, POLE, and MMR genes mutations.
