Research Paper Volume 13, Issue 19 pp 23233—23244
Long non-coding RNA CRNDE as potential biomarkers facilitate inflammation and apoptosis in alcoholic liver disease

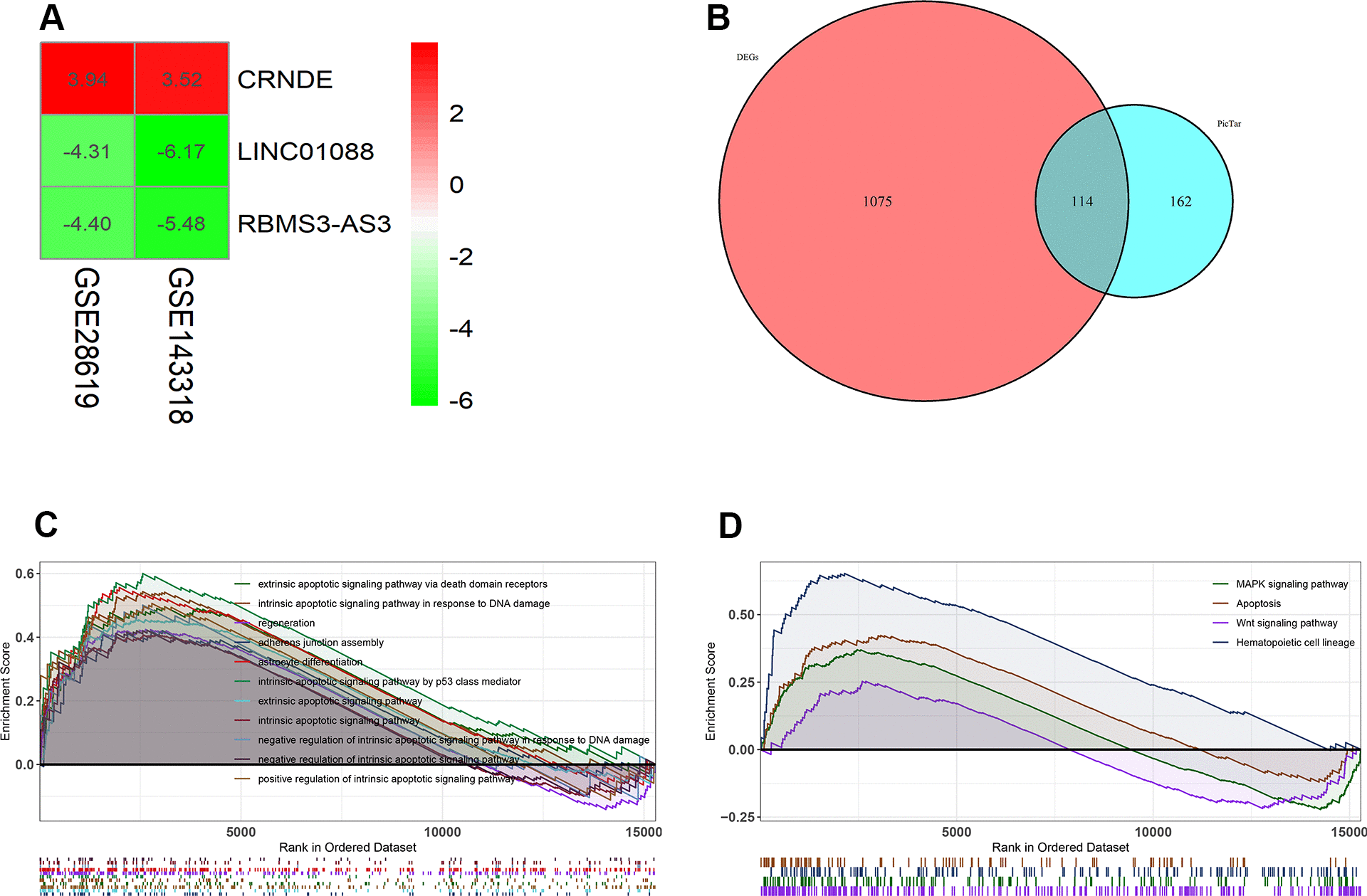

Figure 2. Lnc CRNDE may serve as significant markers in alcoholic liver disease. (A) Log FC heatmap of each expression microarray, the abscissa represent the GEO IDs, the ordinate represents the gene name, the red represents log FC > 0, the green represents log FC < 0 and the value in the box represents the log FC value. (B) Venn diagrams of predicted lnc CRNDE targets genes and differentially expressed genes in GSE28619 dataset. (C) Biological processes enriched in alcoholic liver disease. (D) KEGG pathways enriched in alcoholic liver disease.
