Research Paper Volume 13, Issue 18 pp 22148—22163
Low expression of KIF20A suppresses cell proliferation, promotes chemosensitivity and is associated with better prognosis in HCC

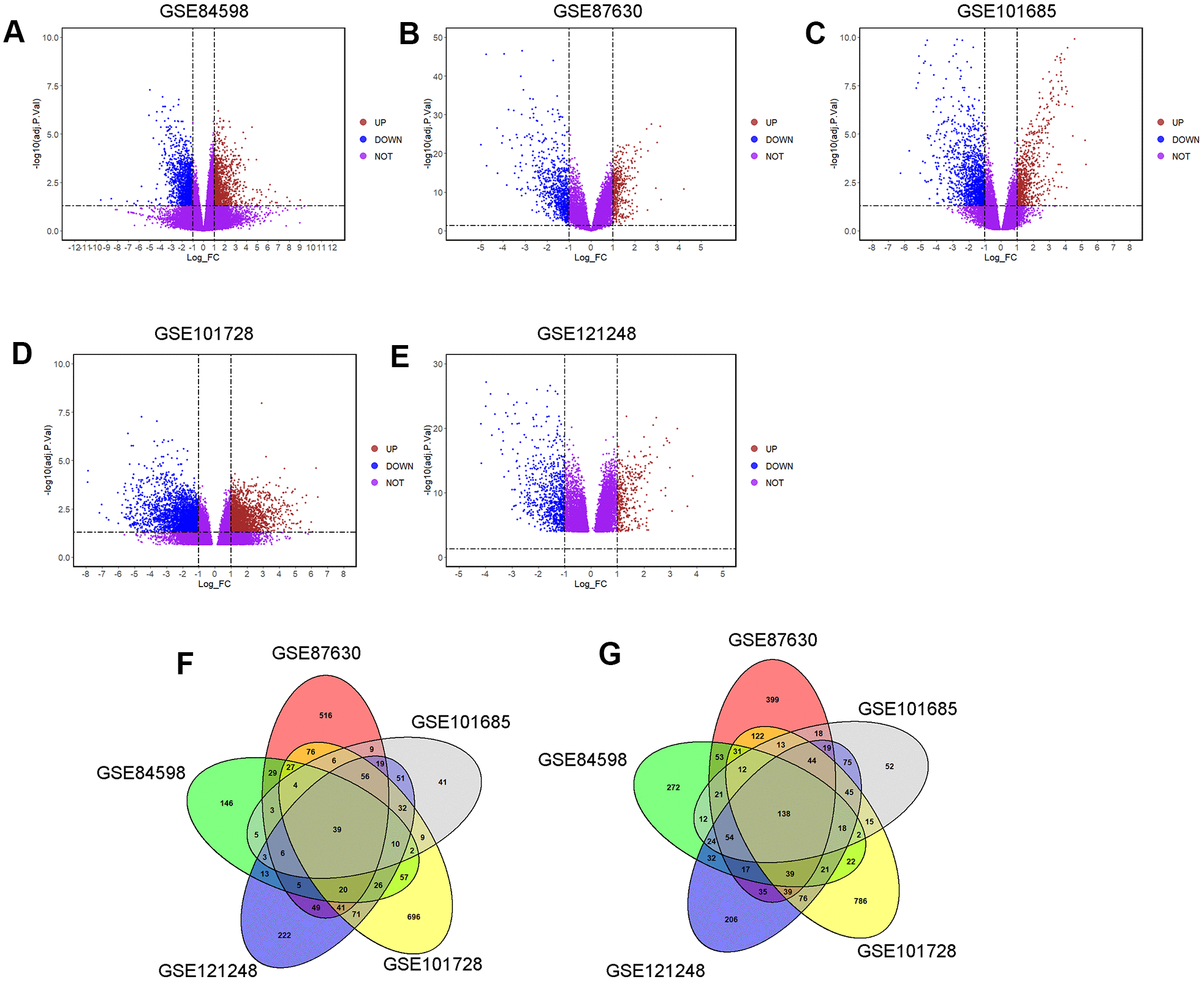

Figure 1. Identification of common DEGs among GSE84598, GSE87630, GSE101685, GSE101728 and GSE121248 microarray datasets. The DEGs in datasets: (A) GSE84598, (B) GSE87630, (C) GSE101685, (D) GSE101728 and (E) GSE121248 were visualized by the volcano plots. UP = up-regulated DEGs; DOWN= down-regulated DEGs; NOT = Not-significantly DEGs. (F) Venn diagram of the up-regulated common DEGs among the five datasets. A total of 39 up-regulated common DEGs was screened. (G) Venn diagram of the down-regulated common DEGs among the five datasets. A total of 138 down-regulated common DEGs was screened.
