Figure 11 — Bioinformatics analysis of the role of CXC ligands in the microenvironment of head and neck tumor

Research Paper|Volume 13, Issue 13|pp. 17789–17817

Bioinformatics analysis of the role of CXC ligands in the microenvironment of head and neck tumor

100%

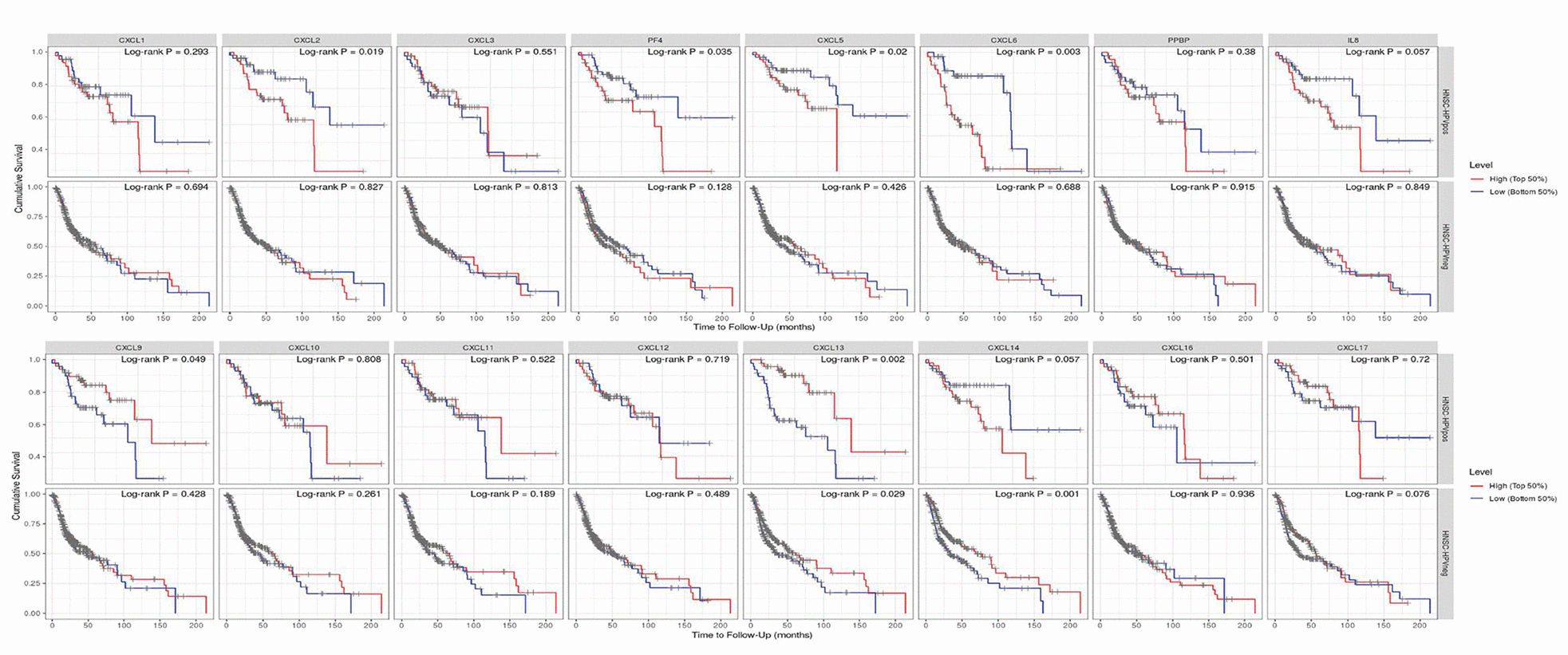

Figure 11.Prognostic value of CXCLs for the overall survival of HPV-positive and -negative head and neck squamous cell carcinoma (HNSC) patients. Upper: HNSC-HPVpos, HPV-positive HNSC patients. Lower: HNSC-HPVneg, HPV-negative HNSC patients.
