Figure 10 — Bioinformatics analysis of the role of CXC ligands in the microenvironment of head and neck tumor

Research Paper|Volume 13, Issue 13|pp. 17789–17817

Bioinformatics analysis of the role of CXC ligands in the microenvironment of head and neck tumor

100%

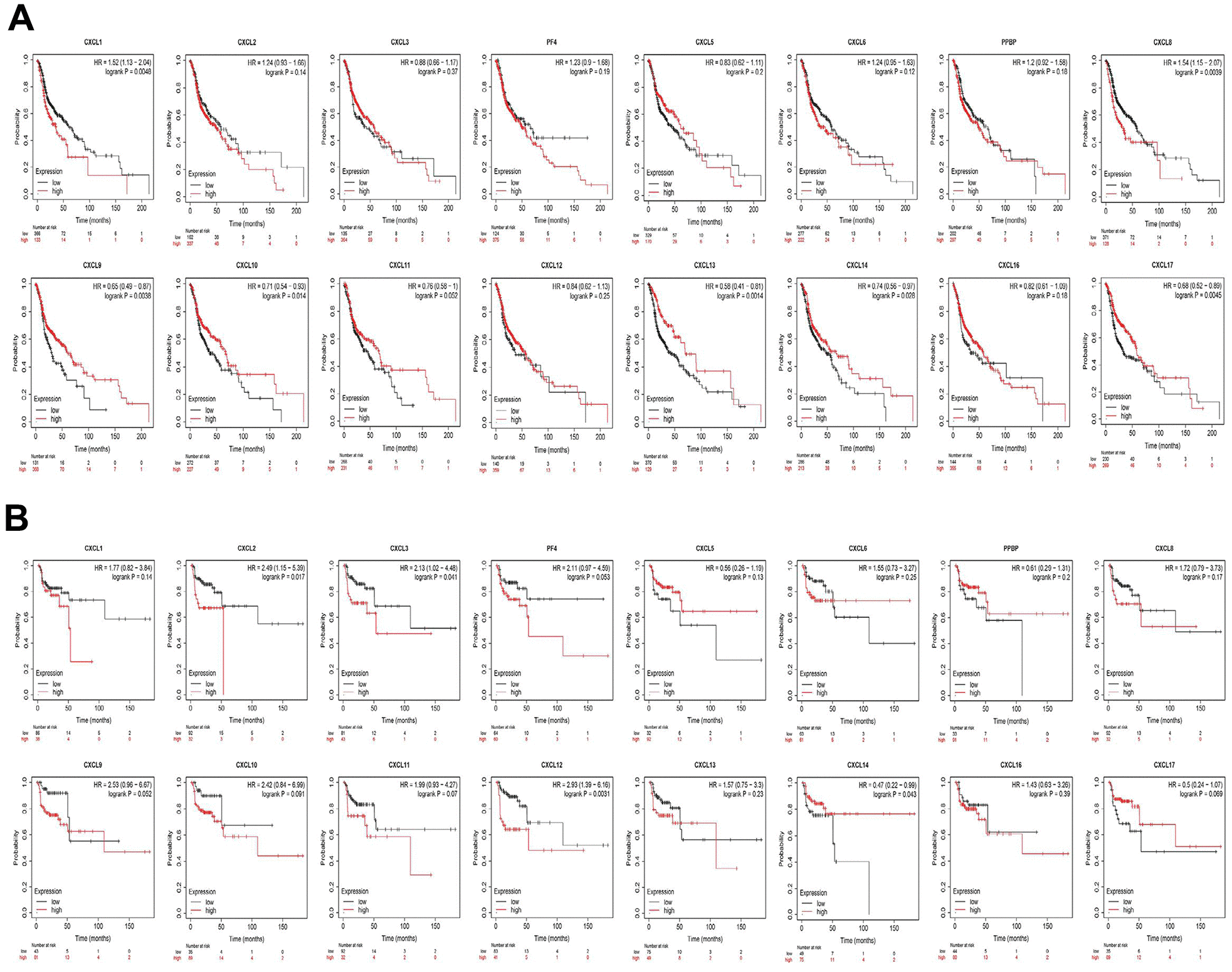

Figure 10.Prognostic value of CXC-motif chemokine ligands (CXCLs) in head and neck squamous cell carcinoma (HNSC). (A) Prognostic value of CXCLs for the overall survival of HNSC patients. (B) Prognostic value of CXCLs for the recurrence-free survival of HNSC patients.
