Figure 3 — Immune infiltration and a ferroptosis-associated gene signature for predicting the prognosis of patients with endometrial cancer

Research Paper|Volume 13, Issue 12|pp. 16713–16732

Immune infiltration and a ferroptosis-associated gene signature for predicting the prognosis of patients with endometrial cancer

Back to articleFigure 3(3 of 7)

100%

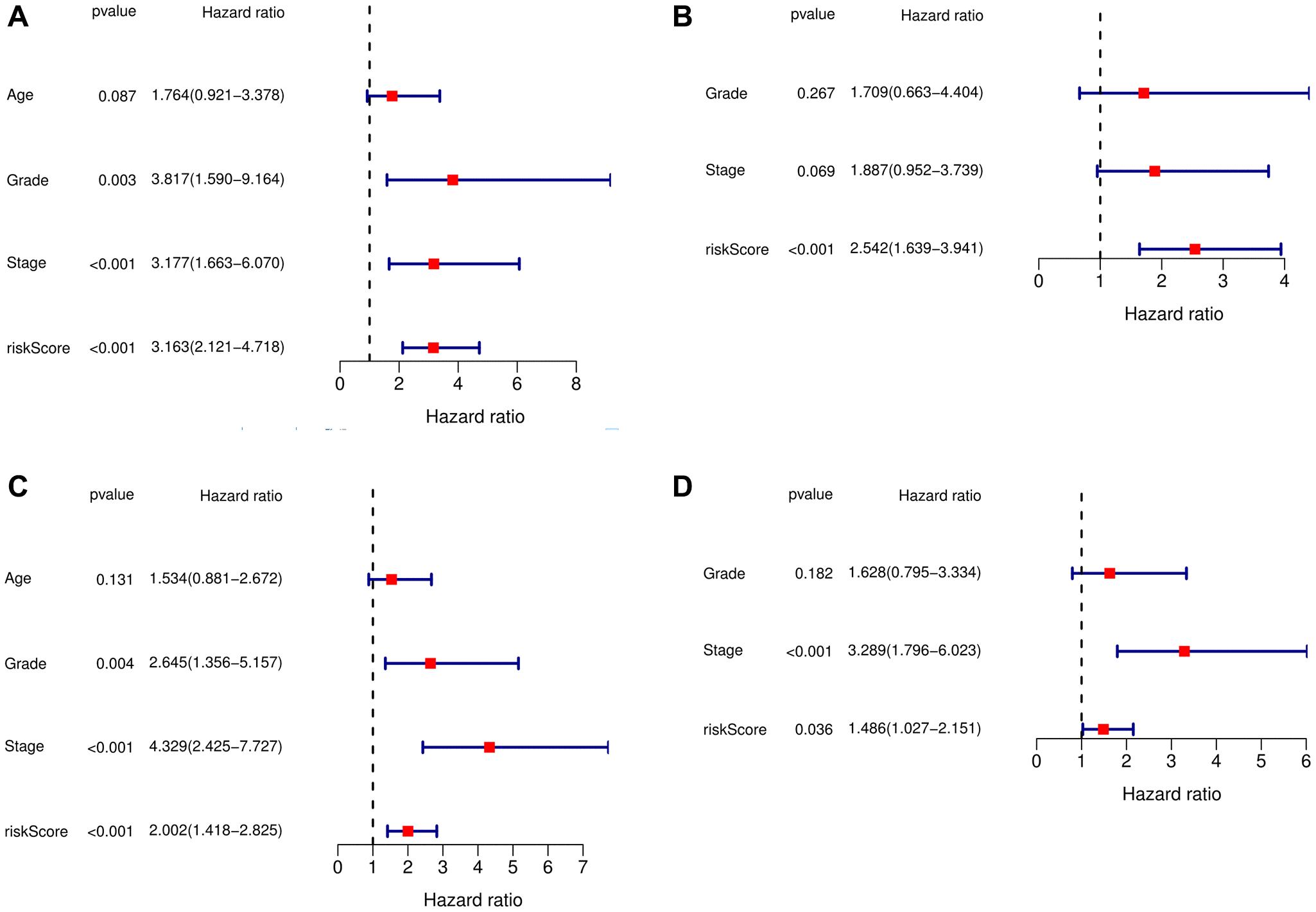

Figure 3.Independent prognostic analysis of risk scores and clinical parameters. (A) Univariate Cox regression analysis in the training cohort. (B) The multivariate Cox regression analysis in the training cohort. (C) The univariate Cox regression analysis in the testing cohort. (D) The multivariate Cox regression analysis in the testing cohort.
