Figure 4 — Identification and validation of inferior prognostic genes associated with immune signatures and chemotherapy outcome in acute myeloid leukemia

Research Paper|Volume 13, Issue 12|pp. 16445–16470

Identification and validation of inferior prognostic genes associated with immune signatures and chemotherapy outcome in acute myeloid leukemia

Back to articleFigure 4(4 of 13)

100%

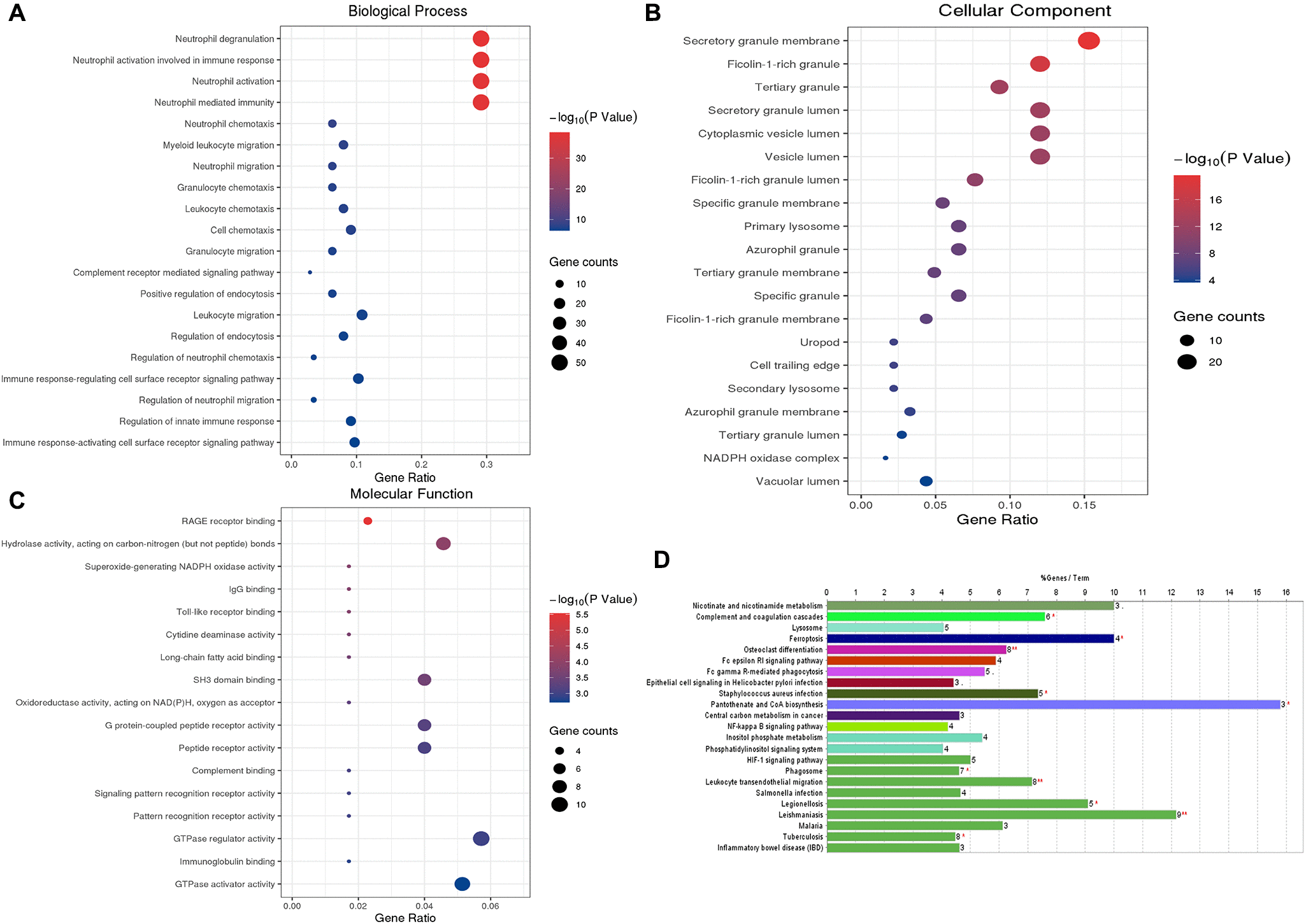

Figure 4.GO functional enrichment analysis and KEGG pathway analysis of characteristic genes in the Blue module. (A) Top 20 enriched biological process terms; (B) Top 20 enriched cell component enrichment; (C) The results of Molecular function enrichment analysis; (D) The results of the KEGG pathway enrichment analysis. Abbreviations: GO: gene ontology; KEGG: Kyoto Encyclopedia of Genes and Genomes.
