Research Paper Volume 13, Issue 1 pp 1017—1031

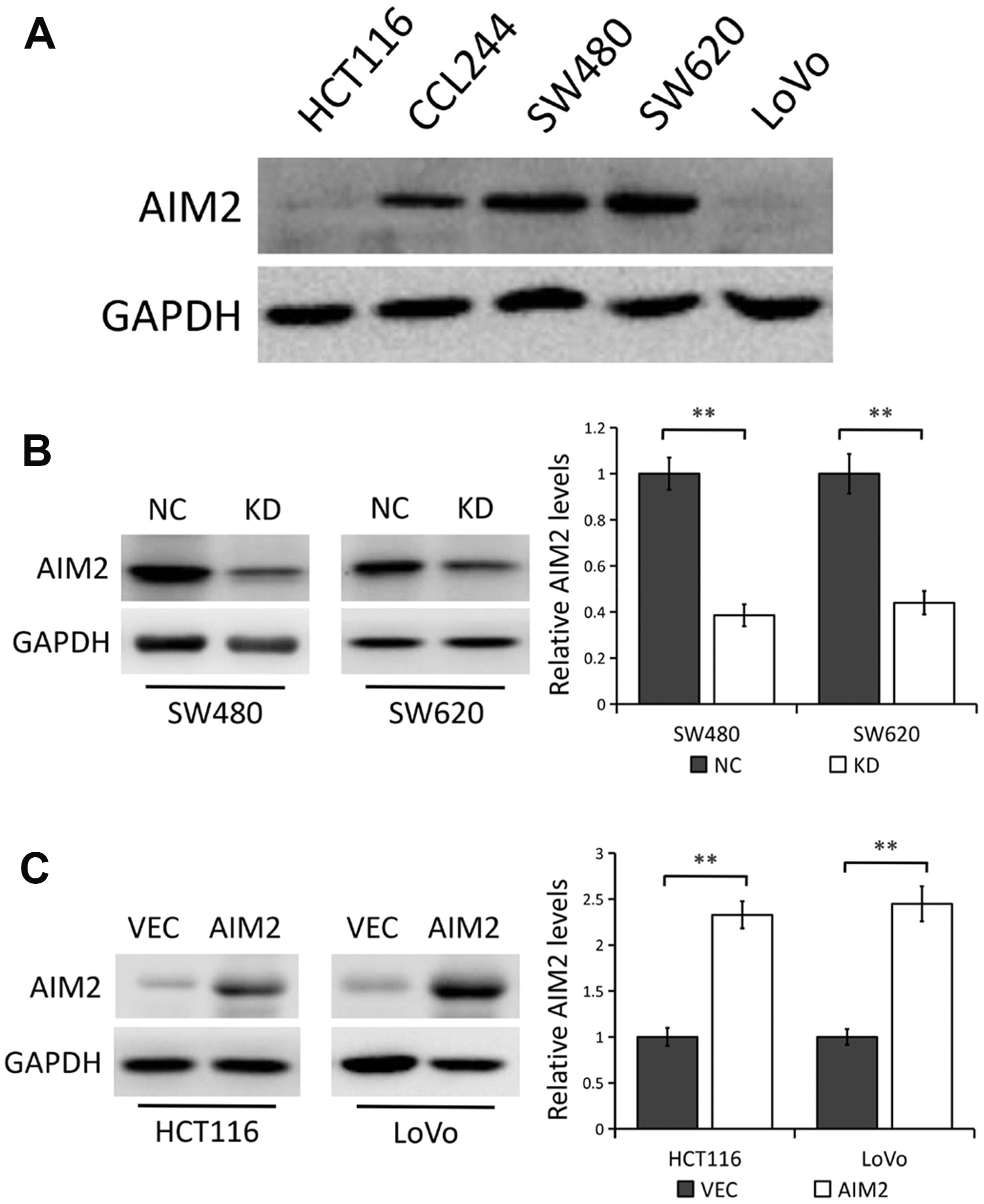

Figure 2. AIM2 protein expression in human CRC cell lines. (A) Western blots of AIM2 protein in five human CRC cell lines (HCT116, CCL244, SW480, SW620 and LoVo). GAPDH as a loading control. (B) Western blots of AIM2 protein in SW480 and SW620 cells stably transfected with control-shRNA (NC) or shRNA against AIM2 (KD). GAPDH as a loading control. Each experiment was performed at least triplicate and the bands were quantified and presented as the mean±SEM. (C) Western blots of AIM2 protein in HCT116 and LoVo cells stably transfected with empty vector (VEC) or plasmid encoding human AIM2 (AIM2). GAPDH as a loading control. Each experiment was performed at least triplicate and the bands were quantified and presented as the mean±SEM. **P<0.01, based on a two-tailed paired Student’s t-test.
